Mercedes A3118300163 - ZB KAELTEMITTELLEITU

O530 - CITARO G 18M, 4-TUERER 628.285

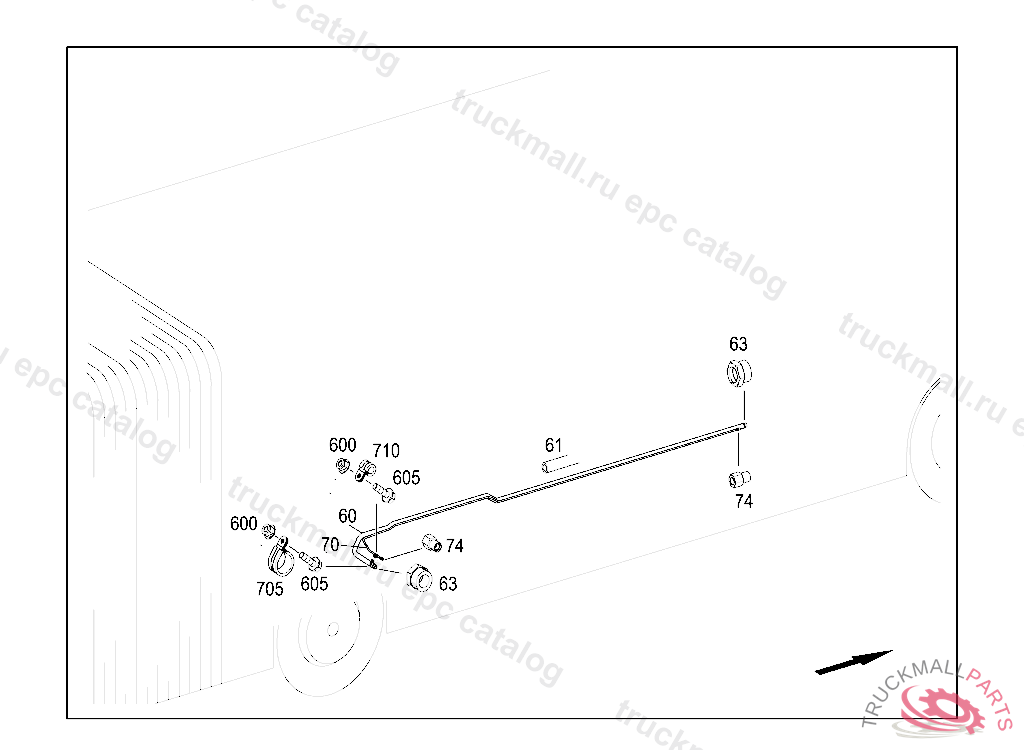

83 HEATING AND VENTILATION - 445 REFRIGERANT LINES IL. 18

Поз.
Артикул
Описание
60
A3118300263
PIPE LINE
61
A0008324823
INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
63
A0009904383
FITTINGM30X2
70
A3118300163
PIPE LINE
74
A0008329525
PIPE SOCKET5/8"-18
600
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
600
N913023006002
NUT BRACKET TO FIRE WALL
605
N910105006006
SCREW BRACKET AND CLAMP M6X20
705
A0019951842
MOUNTING CLAMP28/15
705
N916016028202
CLAMP CABLE HARNESS MOUNTING
705
N000000000329
CLAMP28/15, Replaced By: A0019951842
710
N000000007511
CLAMP10/15
710
N916016010201
CLAMP , Replaced By: N916016010211
710
N000000000320
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
999
A6289970171
FITTING3/4"
999
A6288322337
PLATE
999
A3118306515
PIPE LINE
999
A0069896285
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0019978490
LOOM TIE LINE MOUNTING
