Поз.
Артикул
Описание

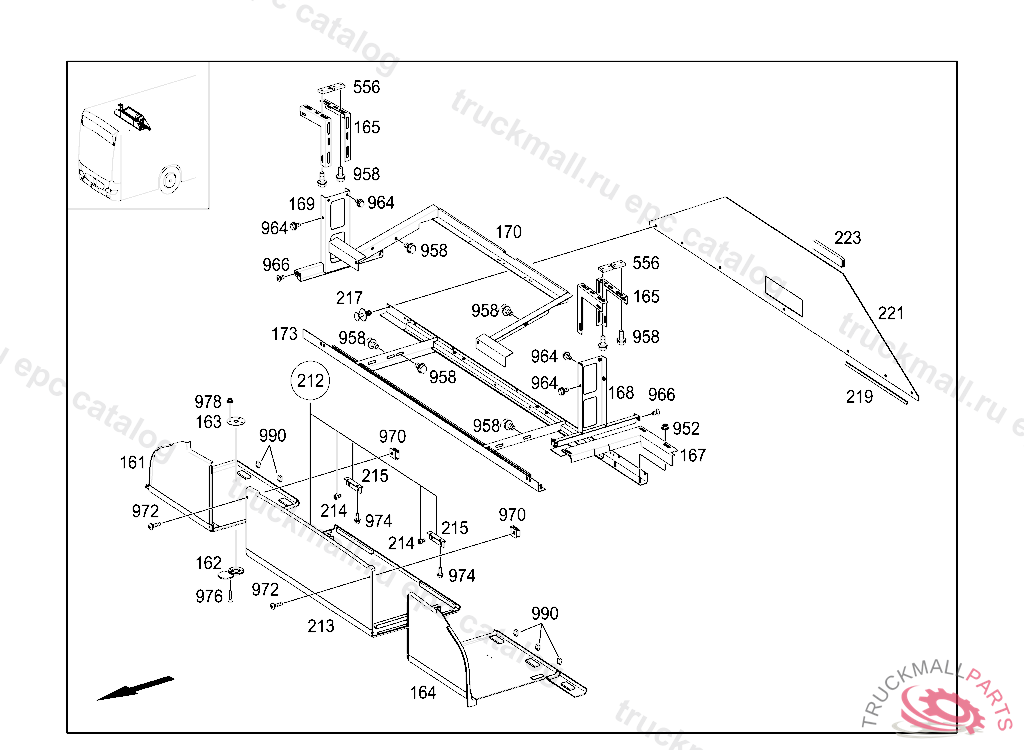

161
PANELLING TRANSVERSE DUCT RIGHT, NO.7C01I.......I.......I I II
161
PANELLING TRANSVERSE DUCT RIGHT, NO.7C01I.......I.......I I II
161
PANELLING WITH AIR CONDITIONER 446X247.5MM,NR.7E85 I ....... I ....... I ....... I ....... II
161
PANELLING WITH AIR CONDITIONER 446X247.5MM,NR.7E85 I ....... I ....... I ....... I ....... II
162
ESCUTCHEON
163
PLATE
164
PANELLING TRANSVERSE DUCT LEFT, NO.7C01I.......I.......I I II
165
ANGLE
167
ANGLE
168
STIFFENING FRONT LEFT
169
STIFFENING FRONT RIGHT
170
FRAME TRANSVERSE DUCT,TOP
173
FRAME TRANSVERSE DUCT,BOTTOM
212
FLAP
213
FLAP , NO.7C01I.......I.......I I II
214
CAP BOLTM5X8
215
HINGE
217
RIVET COVERING TO BRACKET
219
SPACER5X10X425MM
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION,098459 ALSO INSTALLED ON 097575-097589,098047-098056,098143,098162-098167,098174-098177,098196,098327,098362-098367,098416, 098417,098424. EXCEPT FOR 098588,098589.
221
COVERING INTERIOR INDICATION
221
COVERING INTERIOR INDICATION
223
PLASTIC SECTION4.5X10MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
556
CLAMPING PIECE50X30MM
952
NUT , Replaced By: N913023006001
958
SCREW , Replaced By: N910143008000
964
HEXAGON HEAD BOLT
966
SCREWM6X10
970
NUT LOCK TO COVER
972
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
974
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
976
HEXAL. SKT. OVAL HD. SCR.M4X20
978
NUT-AND-WASHER ASSEMBLY. NUTM4
990
TOTAL FOAMED MATERIAL USE SELF-ADHESIVE ON ONE SIDE 6X15MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
