Mercedes A0008310442 - DICHTRAHMEN

O530 - CITARO GUE 18M, 3-TUERER 628.287

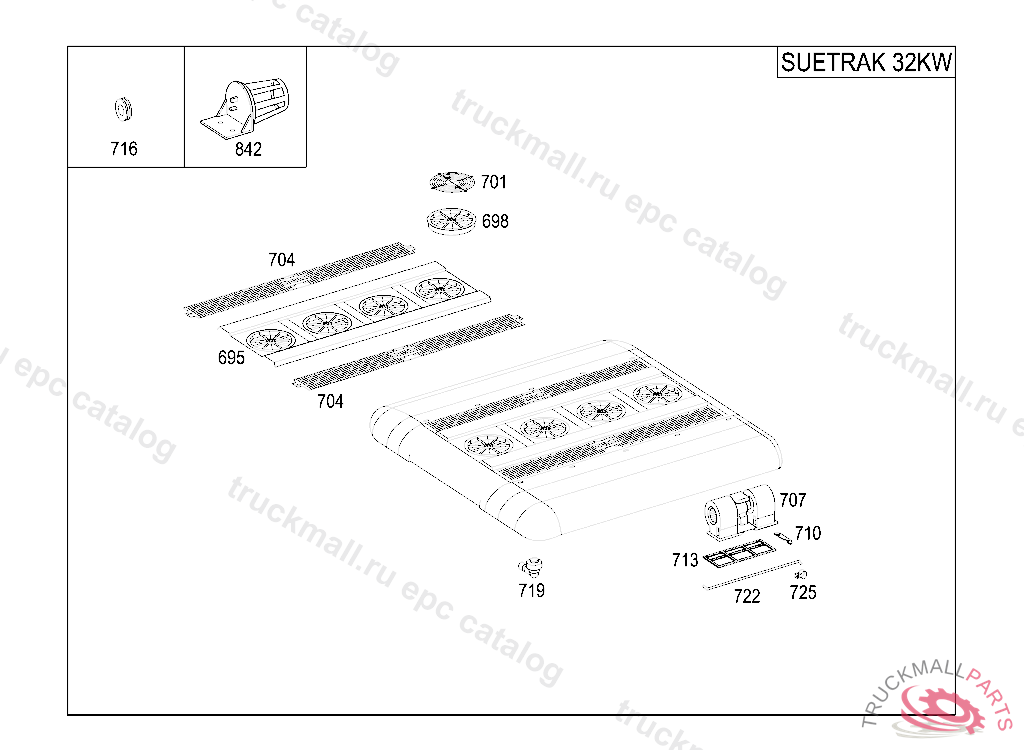

83 HEATING AND VENTILATION - 500 HEATER/AIR CONDITIONING ON ROOF IL. 14

Поз.
Артикул
Описание
695
A0008302752
COVERING
698
A0038302408
AXIAL FAN
701
A0008355018
GRILLE
704
A0008800085
RADIATOR GRILLE
707
A0038302508
BLOWER
710
A0018352214
BRACKET
713
A0008310442
FRAME
716
A0009986105
GROMMETD32
716
A0009986005
GROMMET
716
A0009986205
GROMMET
719
A0018320625
PIPE SOCKET
722
A0008800032
SUPPORT
725
A0019950202
CLAMP
842
A0038213151
SWITCH
999
A0005422292
CONNECTOR
999
A0005462318
COIL SOLENOID VALVE
999
A0008312028
INTERMEDIATE PIECE
999
A0008331520
LINK
999
A0008331620
LINK
999
A0008351588
ADHESIVE LABEL DO NOT ENTER
999
A0008360878
HOSE
999
A0009841864
MOUNTING PLATE
999
A0009911871
RETAINING CLIP
999
A0009980222
PROTECTIVE CAP
999
A0019901617
SCREW , Replaced By: A0008312028
999
A0028350147
FILTER
999
A0029910770
CLIP
999
A0035400405
CABLE HARNESS
999
A0069874557
RUBBER MOULDING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0088300215
PIPE LINE
999
A0088300315
PIPE LINE
999
A0088309515
REFRIGERANT LINE FEED LINE VW 1,AL
999
A0088309615
REFRIGERANT LINE FEED LINE VW 2,AL
999
A0189970645
SEAL RING1-3/16"
999
A0189977645
SEAL RING7/16"
