Mercedes A3118308715 - ZB KAELTEMITTELLEITU

O530 - CITARO GUE 18M, 3-TUERER 628.287

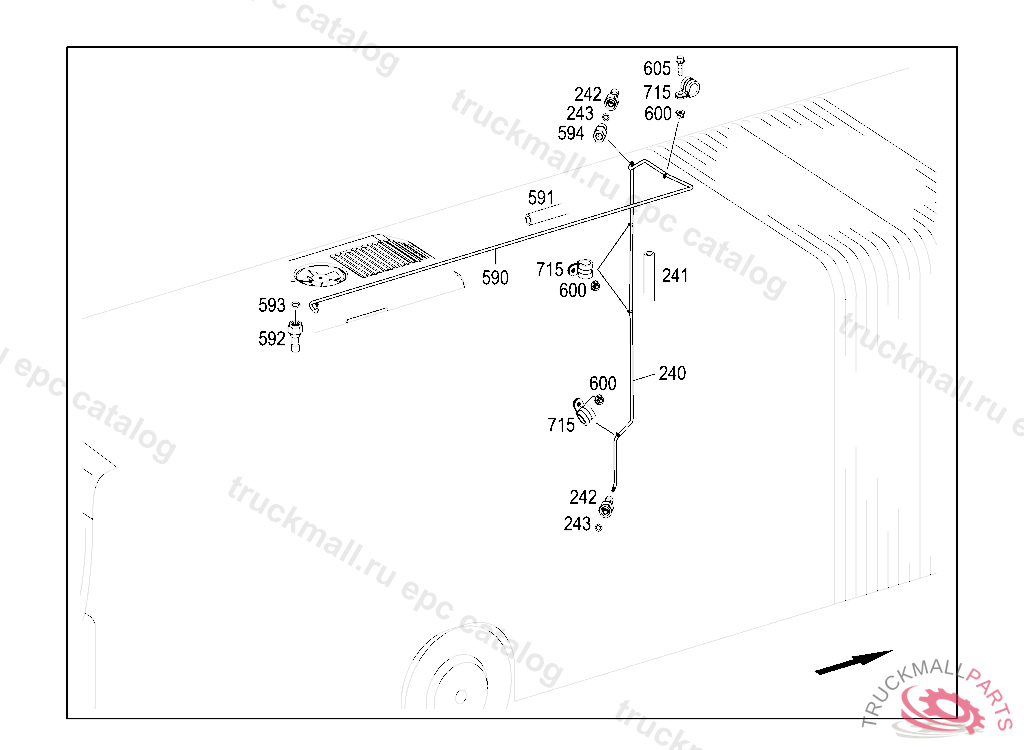

83 HEATING AND VENTILATION - 445 REFRIGERANT LINES IL. 13

Поз.
Артикул
Описание
240
A3118308715
PIPE LINE
241
A0008324623
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
242
A6288300125
PIPE SOCKET5/8"-16
243
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
590
A3238303815
PIPE LINE
591
A0008324623
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
592
A6288300125
PIPE SOCKET5/8"-16
593
A1409970645
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
594
A0008329525
PIPE SOCKET5/8"-18
600
N913023006002
NUT BRACKET TO FIRE WALL
600
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
605
N304017006033
HEXAGON HEAD BOLTM6X60
605
N910105006006
SCREW BRACKET AND CLAMP M6X20
715
N000000005972
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
715
N916016015202
CLAMP LINE MOUNTING
715
A0019950642
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
999
A0019978490
LOOM TIE LINE MOUNTING
999
A0069896285
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
