Mercedes A6284404233 - ZB EL.LTG.SATZ

O530 - CITARO GUE 18M, 3-TUERER 628.287

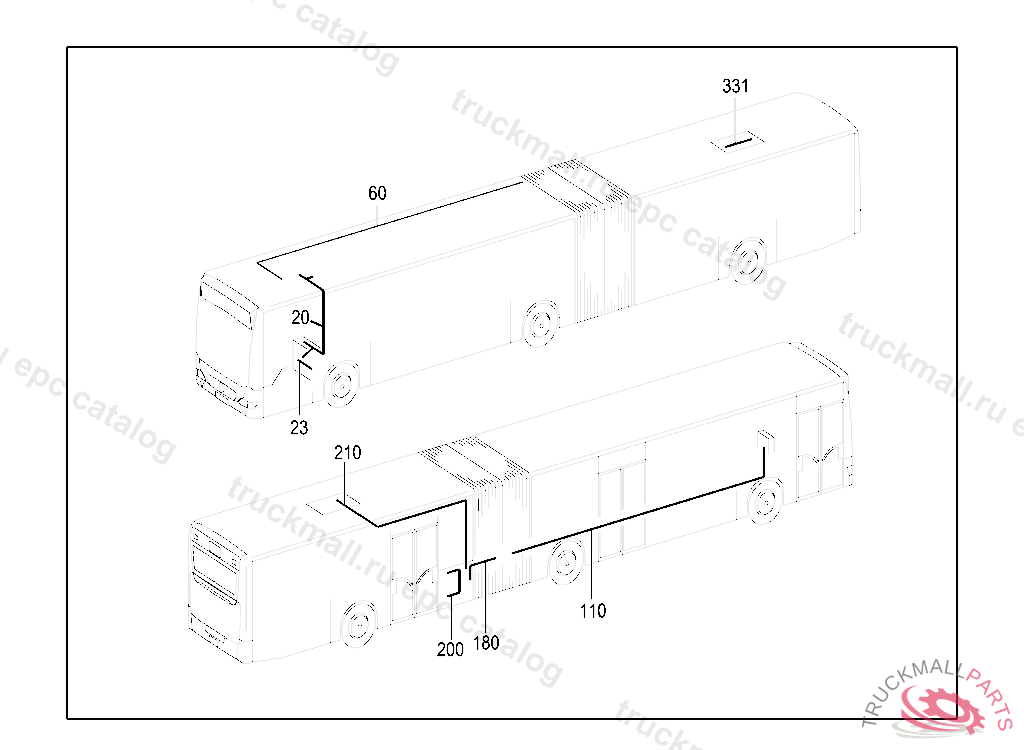

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 340 BATTERY SWITCH CABLES,SWITCHBOARD IL. 1

Поз.
Артикул
Описание
20
A6288200404
ELECTRIC CABLE FROM ELECTRICAL COMPARTMENT TO CONTROL UNIT
23
A6285401409
CABLE HARNESS(FPS1 - E-FACH)
60
A6285402832
ELECTRIC CABLE TRAILER PLUG SOCKET 15-POLE 04A05 -- X1131 / X1132
110
A6284409634
CABLE HARNESS FRONT SECTION SUPPLY 04F01--W0202--X0205--X1104
180
A6284404233
CABLE HARNESS REAR SECTION SUPPLY X1108 -- W1004 -- 01F02
200
A6284405233
ELECTRICAL WIRING HARNESS CHARGING PLUG SOCKET
200
A6284405133
CABLE HARNESS01S03 -- X0608
210
A6284405535
CABLE HARNESS54F01/54F02 --- X0328
210
A6284404133
CABLE HARNESS SUPPLY, PDB (POWER DISTRIBUTION BOARD) TO AUXILIARY SWITCH PANEL
210
A6284404333
CABLE HARNESS FUSE, PDB (POWER DISTRIBUTION BOARD) TO AUXILIARY SWITCH PANEL
331
A6285401309
CABLE HARNESS SECONDARY SWITCHBOARD (FPS4 - SV NST)
999
A6288215505
ELECTRIC CABLE EMERGENCY VALVE RESET
999
A6288213205
ELECTRIC CABLE DOOR LOCKING MECHANISM
