Mercedes N000000000319 - ХОМУТ

O530 - CITARO GUE 18M, 3-TUERER 628.287

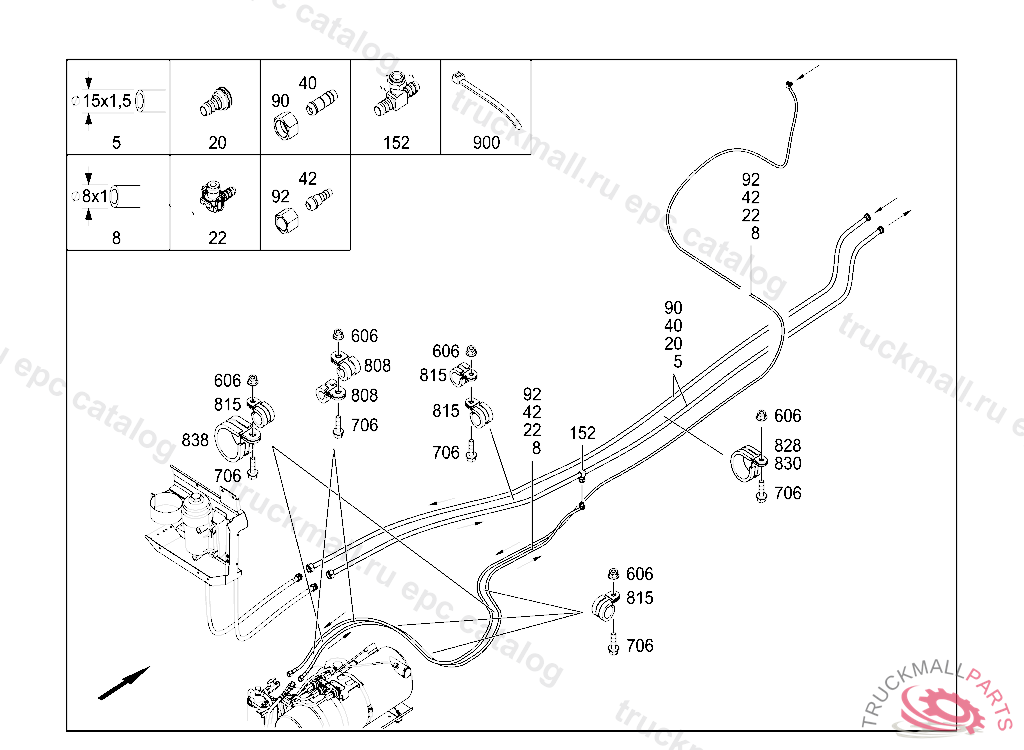

47 FUEL SYSTEM - 060 FUEL LINES AND BREATHING IL. 1

Поз.
Артикул
Описание
5
A0004763601
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
A0004763701
FUEL LINE8X1, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
A0059973089
COUPLING
22
A0069975889
PLUG CONNECTION8X1, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2010
22
A0049978989
COUPLING
40
A0019978472
FITTING FUEL LINES
42
A0019977672
FITTING RETURN LINE
90
N915017015200
UNION NUT FEED LINE
92
N000000004513
NUTBL 8
92
N915017008200
UNION NUT RETURN
152
A0019973374
T-PIECE. T-FITTING
606
N913023006002
NUT BRACKET TO FIRE WALL
706
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
706
N910105006006
SCREW BRACKET AND CLAMP M6X20
808
N000000000319
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
815
N000000005972
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
828
A0019951842
MOUNTING CLAMP28/15
828
N000000000329
CLAMP28/15, Replaced By: A0019951842
830
N000000000330
CLAMP AT SUPPORT 30/15MM, Replaced By: A0019951942
838
N000000000350
CLAMP LINE MOUNTING
900
A0029975890
CABLE TIE LINE MOUNTING 375X8.4MM
900
A0059971590
CABLE TIE IONIC EXCHANGER 380X7.8MM
900
A0049971890
LOOM TIE
