Mercedes A0008308913 - ZB ABDECKHAUBE / HEC

O530 - CITARO GUE 18M, 3-TUERER 628.287

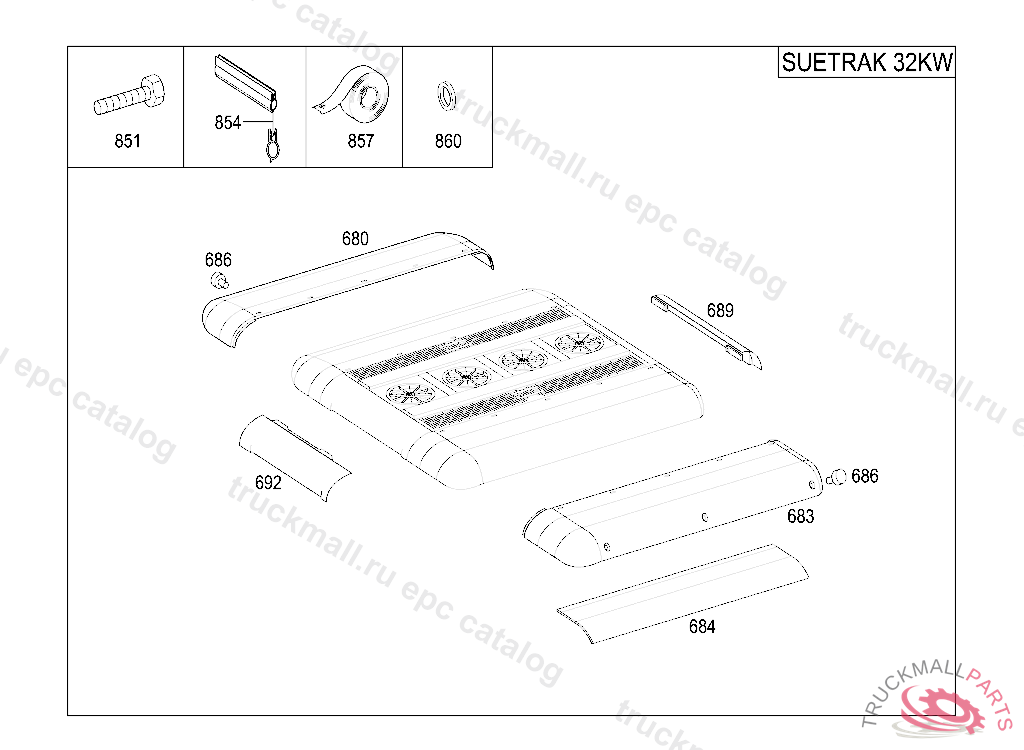

83 HEATING AND VENTILATION - 500 HEATER/AIR CONDITIONING ON ROOF IL. 13

Поз.
Артикул
Описание
680
A0008309013
COVERING LEFT
683
A0008309213
COVERING RIGHT
684
A0008352281
INSULATION
686
A0008310911
LOCKING PIN
689
A0008308913
COVERING
692
A0008308813
COVERING
851
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
851
N910105010002
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
854
A6289870051
RUBBER SEAL
857
A0069896285
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
860
A0009979149
GASKET34X42 MM
999
A0005422292
CONNECTOR
999
A0005462318
COIL SOLENOID VALVE
999
A0008312028
INTERMEDIATE PIECE
999
A0008331520
LINK
999
A0008331620
LINK
999
A0008351588
ADHESIVE LABEL DO NOT ENTER
999
A0008360878
HOSE
999
A0009841864
MOUNTING PLATE
999
A0009911871
RETAINING CLIP
999
A0009980222
PROTECTIVE CAP
999
A0019901617
SCREW , Replaced By: A0008312028
999
A0028350147
FILTER
999
A0029910770
CLIP
999
A0035400405
CABLE HARNESS
999
A0069874557
RUBBER MOULDING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0088300215
PIPE LINE
999
A0088300315
PIPE LINE
999
A0088309515
REFRIGERANT LINE FEED LINE VW 1,AL
999
A0088309615
REFRIGERANT LINE FEED LINE VW 2,AL
999
A0189970645
SEAL RING1-3/16"
999
A0189977645
SEAL RING7/16"
