Mercedes A0015710201 - PUMPE

O530 - CITARO GUE 18M, 3-TUERER 628.287

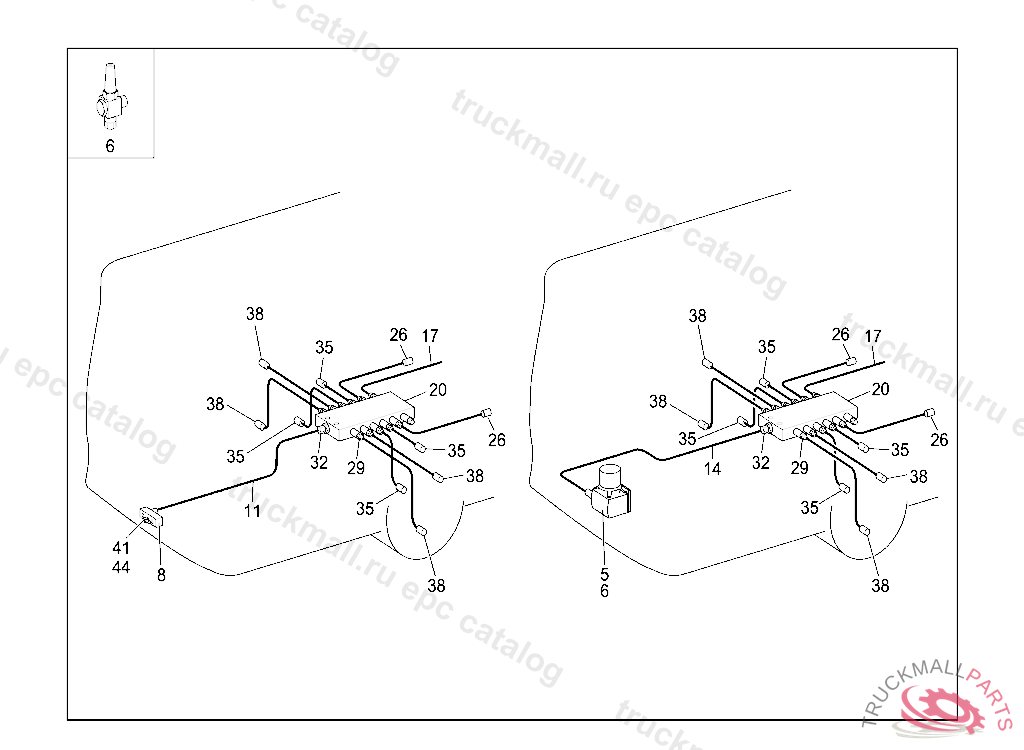

57 CENTRAL LUBRICATION - 001 CENTRAL LUBRICATION IL. 1

Поз.
Артикул
Описание
5
A0015710201
PUMPKFA1-S2+924
6
A0009977710
PRESSURE LIMITING VALVE
8
A0005730142
PLATE GREASE NIPPLE TO SUBSTRUCTURE
11
A0005732836
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
A0005732836
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
17
A0005732836
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
A0045730220
DISTRIBUTOR FRONT AXLE
26
A0039970089
COUPLING STRAIGHT VERSION M 8X1
29
A0005735632
CONNECTORM 10X1
32
A0005732032
CONNECTOR LINE CONNECTION
35
A0049972689
COUPLINGM 6X1, Replaced By: A0069974789
35
A0069974789
PLUG CONNECTIONM 6X1
38
A0059970989
COUPLING ELBOW FITTING M 10X1
41
N071412010200
GREASE NIPPLE
44
A0009985721
EXPANSION PLUG GREASE NIPPLE
