Mercedes
BUS
O530 - CITARO GUE 18M, 3-TUERER
628.287
83 HEATING AND VENTILATION

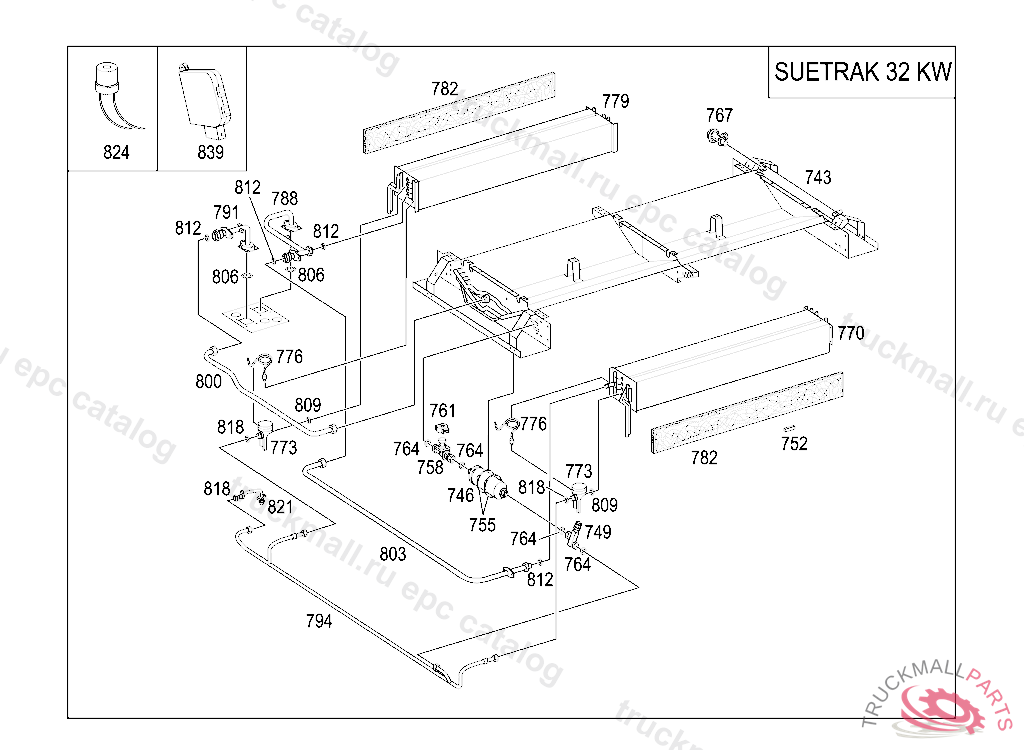

500 HEATER/AIR CONDITIONING ON ROOF IL. 15

Mercedes A0028350047 - TROCKNERPATRONE

O530 - CITARO GUE 18M, 3-TUERER 628.287

83 HEATING AND VENTILATION - 500 HEATER/AIR CONDITIONING ON ROOF IL. 15

Поз.
Артикул
Описание
743
A0018300070
CONDENSER
746
A0028350047
FILTER
749
A0038303584
VALVE
752
A0008305231
PLASTIC FOAM6X12, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
755
A0019951510
CLAMP
758
A0048302284
VALVE
761
A0005460988
SOLENOID
764
A0018354898
SEAL7/8"
767
A0048302384
VALVE
770
A0028301858
EVAPORATOR LILAC/BROWN
773
A0048302884
VALVE
776
A0018350315
PIPE LINE
779
A0028301958
EVAPORATOR RIGHT
782
A0008306918
GRILLE
788
A0008302321
CONNECTOR SUCTION LINE
791
A0008302421
CONNECTOR DELIVERY LINE
794
A0078309815
PIPE LINE
800
A0078309915
PIPE LINE DELIVERY LINE
803
A0088300415
PIPE LINE SUCTION LINE
806
A0008310013
GASKET
809
A0189970445
SEAL RING13/16"
812
A0189970545
SEAL RING
818
A0179977645
SEAL RING7/8"
821
A0008302521
CONNECTOR
824
A0085459124
SWITCH,AUTOMATIC
839
A0068207842
SERVO-D.C. W.GEARBOX
839
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
999
A0005422292
CONNECTOR
999
A0005462318
COIL SOLENOID VALVE
999
A0008312028
INTERMEDIATE PIECE
999
A0008331520
LINK
999
A0008331620
LINK
999
A0008351588
ADHESIVE LABEL DO NOT ENTER
999
A0008360878
HOSE
999
A0009841864
MOUNTING PLATE
999
A0009911871
RETAINING CLIP
999
A0009980222
PROTECTIVE CAP
999
A0019901617
SCREW , Replaced By: A0008312028
999
A0028350147
FILTER
999
A0029910770
CLIP
999
A0035400405
CABLE HARNESS
999
A0069874557
RUBBER MOULDING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0088300215
PIPE LINE
999
A0088300315
PIPE LINE
999
A0088309515
REFRIGERANT LINE FEED LINE VW 1,AL
999
A0088309615
REFRIGERANT LINE FEED LINE VW 2,AL
999
A0189970645
SEAL RING1-3/16"
999
A0189977645
SEAL RING7/16"
