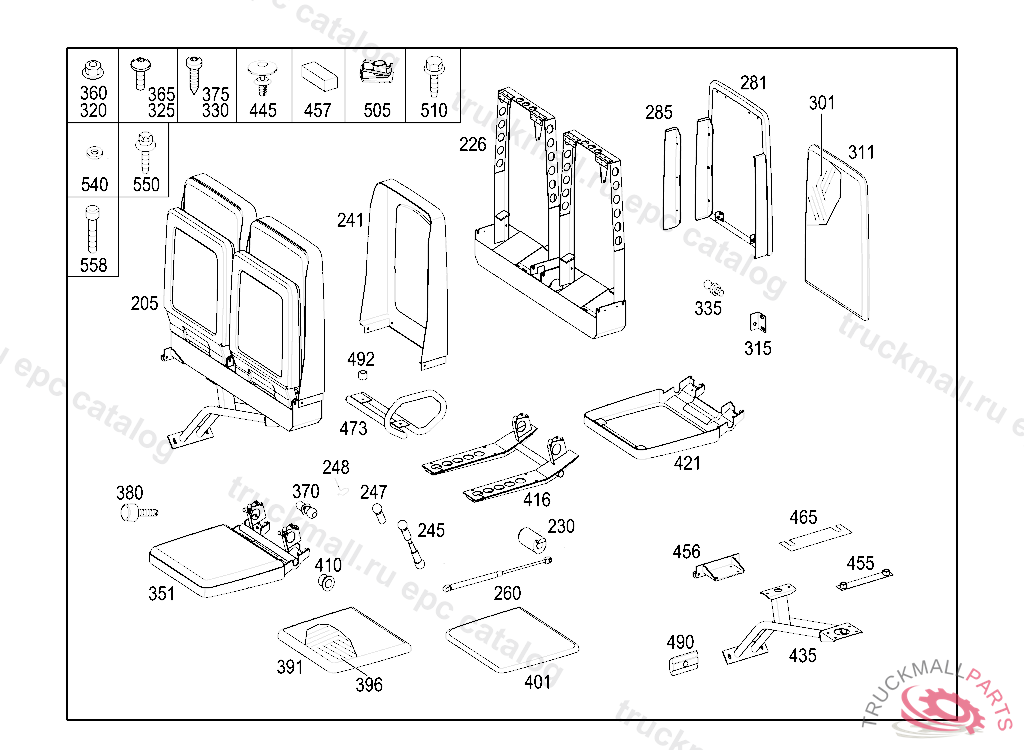

Поз.
Артикул
Описание
205
FOLDING SEAT DOUBLE FOLDING SEAT, RIGHT OPPOSITE DIRECTION OF TRAVEL
205
FOLDING SEAT DOUBLE FOLDING SEAT, LEFT OPPOSITE DIRECTION OF TRAVEL
226
SEAT FRAMEWORKTO A6289300005 / A6289300105, .......I.......INO.7E87I.......I II
230
SUPPORT SEAT FRAMEWORK
241
PANELLING BACKREST
245
ROD
247
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
248
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
260
GAS PRESSURE SPRING BACKREST
281
BACKRESTTO A6289300005 / A6289300105
285
COVERING LEFT, .......INO.7E86I.......I.......I II
285
COVERING RIGHT, .......INO.7E86I.......I.......I II
301
COVER , STATE COLOR WHEN ORDERING
311
PAD
315
ANGLE
320
NUT , Replaced By: N913023006001
325
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
330
TAPPING SCREW4,2X16
335
BALL PIVOT ACCELERATOR PEDAL,4 859026
351
SEAT CUSHIONTO A6289300005 / A6289300105
360
NUT BRACKET TO FIRE WALL
360
NUT , Replaced By: N913023006001
365
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
370
BALL PIVOT ACCELERATOR PEDAL,4 859026
375
TAPPING SCREW CONTROL UNIT TO FIRE WALL
380
BUFFER , Replaced By: A2019880511
391
SEAT CUSHIONTO A6289300621
396
COVER , STATE COLOR WHEN ORDERING
401
PAD
410
BUSHING
416
SEAT CUSHION FRAME
421
COVERING
435
SEAT BASE SEAT FRAME, DUAL SEAT
445
RIVET COVERING TO BODY
455
PLATE
456
SUPPORT
457
MOUNTING STRIP80X30X20
465
PLATE TOLERANCE COMPENSATION
473
HANDLE LEFT HANDLE, .......I.......INO.7E87I.......I II
490
SLIDE
490
PLATE
492
SPACER TUBE , 114.010 UP TO CHASSIS 076372,114.015,017 UP TO CHASSIS 108464,114.011 UP TO CHASSIS 012125,114.021 UP TO CHASSIS 008449,FROM C HASSIS:SEE SA 55954 114.022 UP TO CHASSIS 020828,114.023 UP TO CHASSIS 007891,115.010 UP TO CHASSIS 096927,115.015 UP TO CHASSIS 119272,FROM CHASS IS:SEE SA 55954
505
NUT RETAINER , Replaced By: A0019944745
505
NUT RETAINER , Replaced By: A3229900091
510
SCREW SHIFT LEVER TO BRACKET M8X30
510
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
510
SCREW , Replaced By: N914146006102
510
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
540
WASHER BRACKET TO CAB REAR PANEL
550
HEXALOBULAR BOLT SUPPORT TO CRANKCASE M8X20
558
SCREWM8 X 16 MM
999
ADHESIVE TAPE15X4
