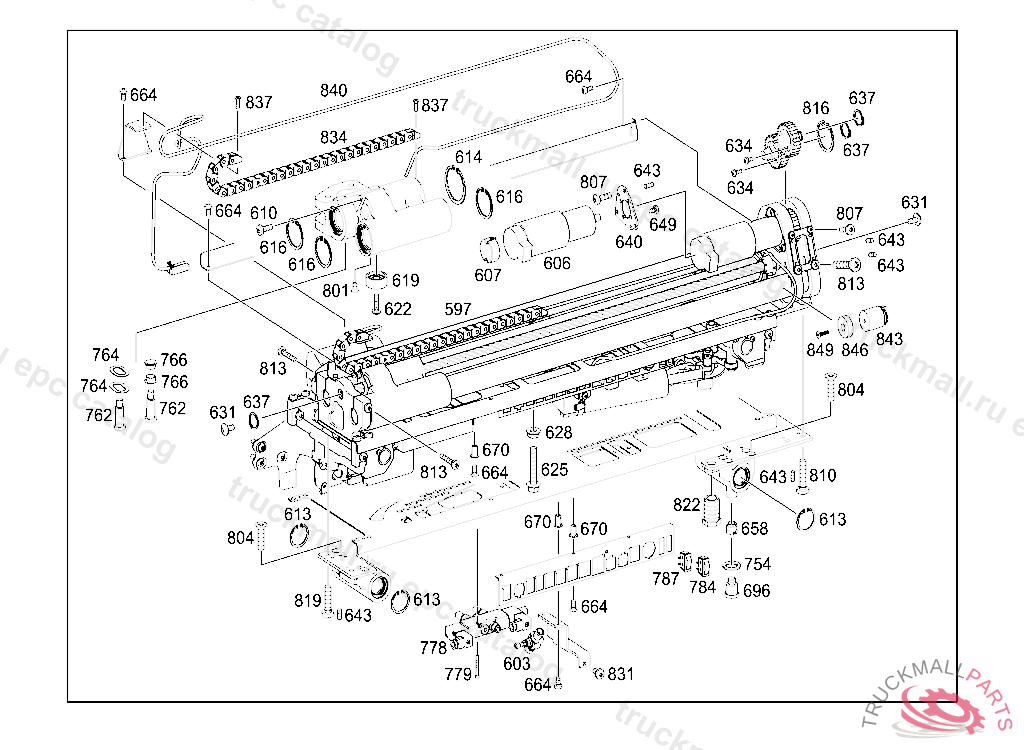

Поз.
Артикул
Описание
597
DOOR ACTUATION
603
VALVE
606
GEARED MOTOR
606
GEARED MOTOR
607
PULSE GENERATOR
610
SCREW CLAMP MOUNTING M 6X16
613
LOCK RING , Replaced By: A0009949241
614
RETAINING RING65X2.5
616
LOCK RING52X2 MM
619
ROLLER BEARING
622
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
625
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
628
NUT HINGE LEVER TO MOUNTING
631
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
634
HEXALOBULAR BOLT PLUG SOCKET TO BRACKET M4X10
637
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
640
ATTACHMENT ANGLE BRACKET
643
CYLINDER PIN5X12
649
SCREW. HEXALOBULAR BOLTM5X8
658
THREAD INSERT
664
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
670
RIVET NUT. RIVETED NUT SHIFTING LOCK
696
HINGE BOLT
754
SLIDING DISK
762
HINGE BOLT
764
SLIDING DISK
766
COLLARED BUSHING
778
5-2-WAY PNEUMATIC VALVE
779
SCREW W HEXAGON SOCKET
784
WORKSHOP BUTTON(S)
787
SWITCH,AUTOMATIC. SWITCH
801
SCREW RELAY SOCKET TO APPARATUS PLATE M5X10
804
SCREW. HEXAL. SOCKET CSK. BOLTM8X30
807
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
810
SCREW SERVICE BRAKE VALVE,D 227053
813
HEXALOBULAR BOLT. SCREWM 8X45
816
LOCK RING TORSION BAR
819
HEXALOBULAR BOLTM8X32
822
PIPE SECTION
831
SCREW STEERING SHAFT BEARING TO CAB
834
CABLE GUIDE
837
SCREW ROLLER BLIND M3X10
840
ELECTRICAL WIRING HARNESS
843
IMPACT ABSORBER
846
MAGNET
849
SCREW
999
BRACKET
999
WASHER
