Поз.
Артикул
Описание
5

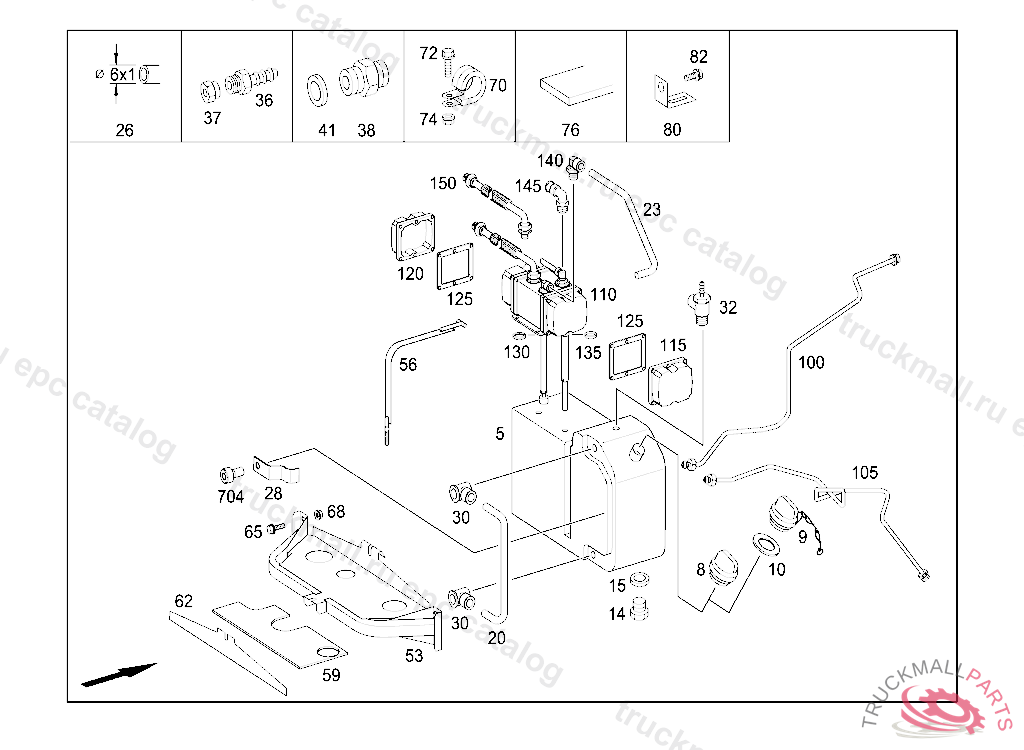

OIL TANK ENGINE OIL AUTOMATIC REPLENISHMENT " GROENEVELD "
8
CAP OIL REFILLING
9
CAP OIL FILLING
10
GASKET , Replaced By: A1020180080
14
SCREW PLUG
15
SEAL RING SOLENOID VALVE A 18X24
20
HOSETO 346 500 60 03, ORDER BY THE METER
20
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
23
HOSE , Replaced By: A0089979082
26
PLASTIC PIPE RISING PIPE 4X6 MM
28
BRACKET
30
ELBOW FITTING
32
ELBOW FITTING
36
FITTING RETURN
37
NUT. UNION NUT RETURN
38
FITTING COOLING WATER INLET FOR AIR COMPRESSOR
38
FITTINGM18X1.5
41
SEAL RING VALVE TO VALVE,K 025179
53
BRACKET OIL TANK
56
STRAP OIL TANK
59
RUBBER MOUNTING ON BRACKET
62
RUBBER MOUNTING ON BRACKET
65
SCREWM 10X20
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
MOUNTING CLAMP SILICONERSGU S 18/15
70
CLAMP10/20
70
CLAMPRSGU S 18/15
70
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
70
CLAMP10/20MM
70
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
70
CLAMP10/15
72
SCREW BRACKET TO CAB REAR PANEL M 8X20
74
NUT BRACKET TO FIRE WALL
74
NUT HORN TO BRACKET M8
76
ADHESIVE STRIP. BASE40 X 2 MM
80
BRACKET
80
BRACKET LINE MOUNTING
80
82
SCREW BRACKET AND CLAMP M6X20
100
OIL LINE AUTOMATIC OIL REPLENISHMENT
105
110
CONTROL UNIT AT OIL TANK
115
COVER BLACK
120
COVER TRANSPARENT
125
FULL FACE GASKET
130
SEAL RING22,2X3,5 MM
135
SEAL RING17X3 MM
140
BANJO UNION
145
ELBOW FITTING DIA., 10MM
150
CABLE HARNESS
704
SCREW FUSE BOX TO SIDE MEMBER,5 097182
