Поз.
Артикул
Описание

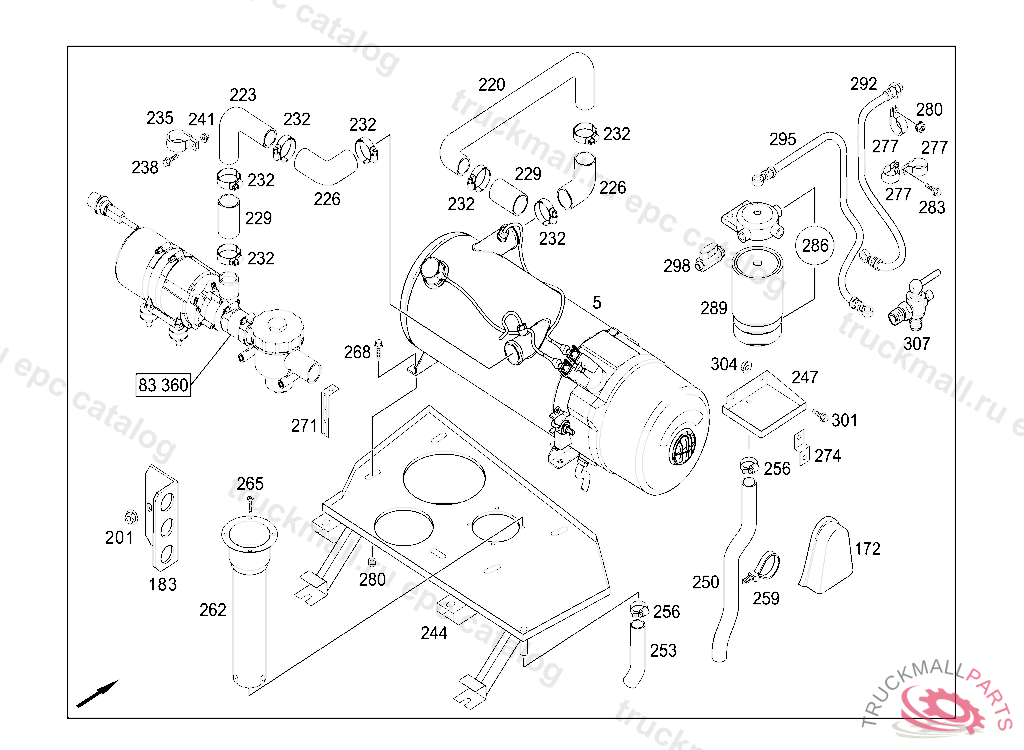

5
BASIC HEATERWEBASTO, THERMO 350, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2011
5
BASIC HEATERWEBASTO, THERMO 300
5
HEATERSPHEROS,THERMO S300, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.01.2011
5
HEATERSPHEROS,THERMO S350, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.01.2011
172
SPLASH GUARD. CAP
183
BRACKET CABLE HARNESS MOUNTING WEBASTO HEIZUNG
201
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
201
NUT , Replaced By: N913023006001
220
PIPE LINE HEATING PIPE
223
PIPE LINE
226
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
226
HOSE SILICONE 38 X 50 MM90°
229
HOSE ,D 209702
232
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
235
CLAMP LINE MOUNTING
235
CLAMP , Replaced By: A3829950701
235
CLAMP38/20
238
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
238
SCREW , Replaced By: N914146006102
241
NUT BRACKET TO FIRE WALL
244
BASE PLATE
247
SHELL
250
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
253
HOSE. PLASTIC PIPE , Replaced By: A0139971282
256
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
259
LOOM TIE , Replaced By: A0019978390
262
PIPE LINE EXHAUST PIPE
265
TAPPING SCREW BRACKET TO SUPPORT
268
SCREW , Replaced By: N910143008000
271
BRACKET
274
BRACKET
277
CLAMP10/15
277
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
277
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
280
NUT HORN TO BRACKET M8
283
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
286
FUEL FILTER
286
FUEL FILTER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2011
286
FUEL FILTER
289
FILTER ELEMENT
289
FILTER ELEMENT
289
FILTER ELEMENT , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2011
289
FILTER ELEMENT
292
292
FUEL HOSE
295
HOSE
295
FUEL HOSE
298
BALL VALVE (SHUT-OFF VALVE)
301
SCREW. HEXAGON HEAD BOLT LINE MOUNTING M6X70
304
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
307
DRAIN COCK WATER DEAERATOR M12X1, Replaced By: A0029902617
307
SHUT-OFF COCK WATER DEAERATOR M12X1, Replaced By: A0028306484
999
WARNING SIGN , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.01.2011
999
WASHER
