Поз.
Артикул
Описание

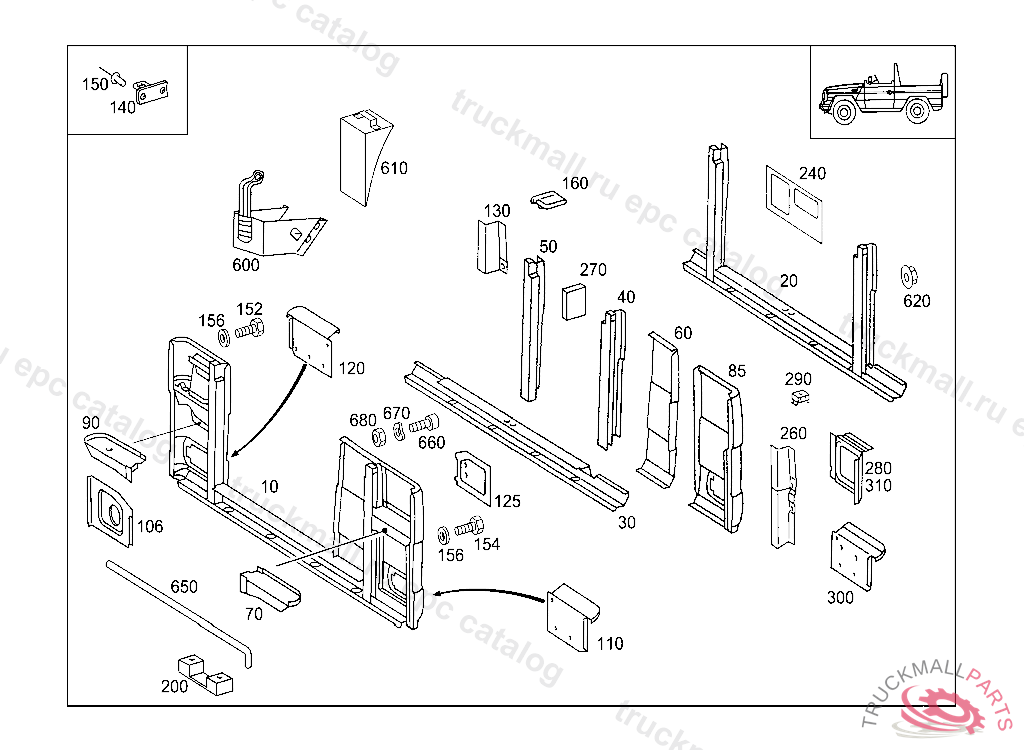

10
REAR PANEL
10
REAR PANEL
10
REAR PANEL
20
FRAME , NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY
30
PANELLING REAR BODY PANEL
40
PILLAR LEFT
50
PILLAR REAR END DOOR
60
END PIECE BOTTOM REAR LEFT
70
END PIECE LEFT
85
PANELLING REAR BOTTOM RIGHT
85
PANELLING BOTTOM REAR RIGHT
85
PANELLING BOTTOM LEFT, TO BE ADAPTED DURING ASSEMBLY ADAPT AT VEHICLE BEFORE PAINTWORK
85
PANELLING BOTTOM LEFT
90
END PIECE RIGHT
106
REINFORCEMENT BOTTOM RIGHT PANELLING, X 19471620111028
106
REINFORCEMENT BOTTOM RIGHT PANELLING
110
REINFORCEMENT RIGHT BETWEEN LOWER PANELING, CONNECTION AND REAR CROSS MEMBER, 20131113
120
REINFORCEMENT RIGHT,BETWEEN BOTTOM PANELING, CONNECTION AND REAR CROSS MEMBER
125
REINFORCEMENT , X 15686420040630
125
REINFORCEMENT
125
REINFORCEMENT
130
REINFORCEMENT TOP LEFT
130
REINFORCEMENT BOTTOM LEFT
140
TARPAULIN BOW REAR LEFT AND RIGHT
140
TARPAULIN BOW FOLDING TOP TO ROLL-OVER BAR
150
BLIND RIVET4X16
150
RIVET BRACKET TO CAB FLOOR
150
BLIND RIVET MOUNTING OF CARRIER 4X8
152
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
160
PLATE REAR LEFT
160
PLATE REAR RIGHT
160
PLATE REAR
200
PLATE
240
REINFORCEMENT BOTTOM
260
REINFORCEMENT BOTTOM
270
STRUT AT REINFORCEMENT
280
REINFORCEMENT BOTTOM
280
REINFORCEMENT
290
NUT RETAINER SIDE PANEL,RIGHT
300
REINFORCEMENT LEFT
300
REINFORCEMENT LEFT
310
REINFORCEMENT BOTTOM
310
REINFORCEMENT BOTTOM RIGHT
600
FIXTURE CHOCK
610
CHOCK
620
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
650
LINE FROM EXPANSION TANK TO HEATING PIPE 8X1 MM, ORDER BY THE METER
660
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
670
SPRING WASHER ALTERNATOR CONNECTION D+
680
NUT IN CASE OF SUBSEQUENT INSTALLATION
