Поз.
Артикул
Описание

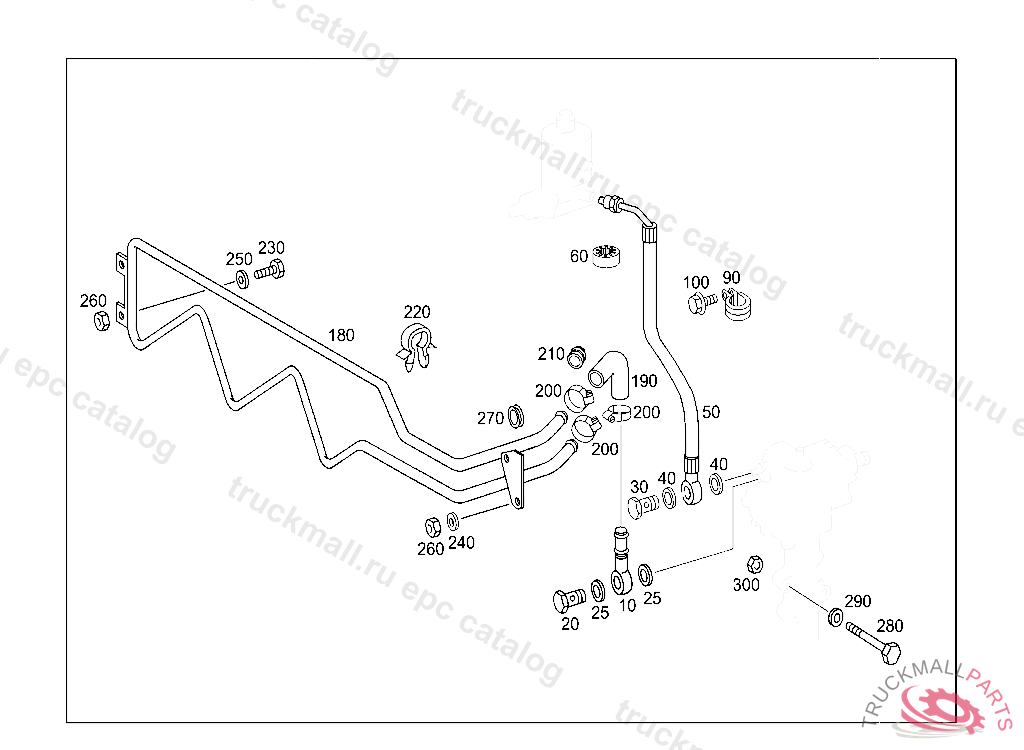

10
LINE COOLING LINE
20
SCREW. BANJO BOLT AIR RESERVOIR,CONNECTION: "33",4 872664
25
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
30
BANJO BOLT OIL LINE TO PUMP
40
SEAL RING FROM FUEL TANK TO FUEL TANK
50
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
50
HOSE FROM POWER STEERING PUMP TO STEERING, 20131220
60
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
90
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
90
CLAMP CABLE HARNESS MOUNTING
90
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
100
SCREW-AND-WASHER ASSEMBLY MOUNTING SHIELD RIGHT
180
COOLING LINE COOLING LINE
190
HOSE FROM STEERING GEAR ON COOLING LINE
200
HOSE CLAMP LINE MOUNTING
210
GROMMET BRAKE CABLE PASSAGE IN CONSOLE
210
GROMMET
220
CLAMP , Replaced By: A0009955844
230
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
240
WASHER DEFLECTOR TO C PILLAR
250
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
250
WASHER COMPRESSED AIR LINE TO BRACKET
260
NUT SPRING-LOADED PUSH ROD
270
GROMMET RIGHT FRONT SIDE MEMBER, A 438645 F 419551
280
HEXAGON HEAD BOLT. SCREW PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
280
HEXAGON HEAD BOLT STEERING TO FRAME M12X160, 20131220
280
HEXAGON HEAD BOLT STEERING TO FRAME M12X1.5X240
280
HEXAGON HEAD BOLT. SCREW CONSOLE TO ENGINE CROSS MEMBER
290
WASHER
300
HEXAGON NUT CONSOLE TO REAR CROSS MEMBER
