Mercedes A0005462015 - KABELBAUM VERSORGUNG

CONECTO 12 M 628.310

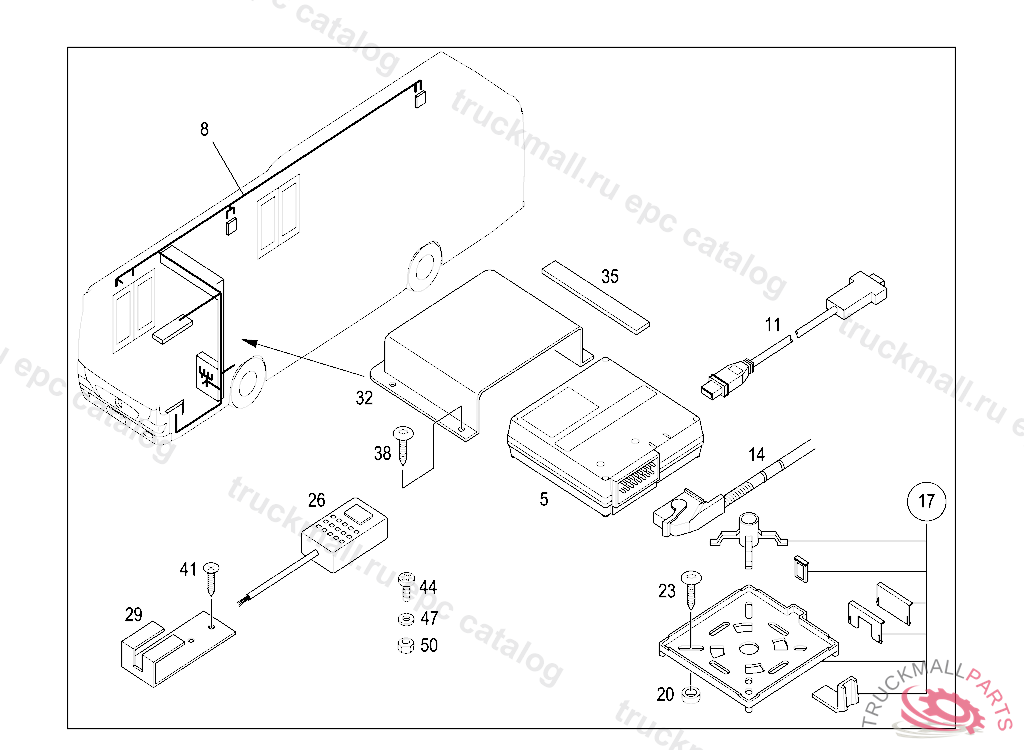

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 607 ELECTRICAL CABLES,CRASH RECORDER

Поз.
Артикул
Описание
5
A0015408345
CONTROL UNIT STANDARD VERSION 2.0
8
A6285402835
CABLE HARNESS. ELECTRIC CABLE MAIN CABLE HARNESS " UDS "
11
A0005462115
CONNECTION LINE. ELECTRIC CABLE CENTRAL CHECK POINT, CONNECTIONS: USB-A/SUB-D, UDS2.0 (5M)
14
A0005462015
VERSORG.LEITUNG. ELECTRIC CABLE SUPPLY " UDS ", 2.0 (5M)
17
A0038205889
ACCESSORY KITUDS 2.0
20
A3579910040
SPACER TUBE
23
N000000000464
TAPPING SCREW HANDLE TO PANELLING
26
A0005408505
CONTROL MODULE FOR D-SUB SOCKET,9-PIN
29
A6288270414
BRACKET CONTROL UNIT
32
A6288220240
COVERING (CONTROL UNIT)
35
A0019872333
RUBBER SECTION SEAL TO BODY, ORDER BY THE METER
38
N000000000453
SHEET METAL SCREW MODULE TO HOUSING
41
N000000000477
TAPPING SCREW3,5X16MM
44
A0039907512
BOLT W HEX. SOCKET
47
N000000003748
WASHER DIA., 3,2MM
50
N304032003001
NUT BRACKET MOUNTING
