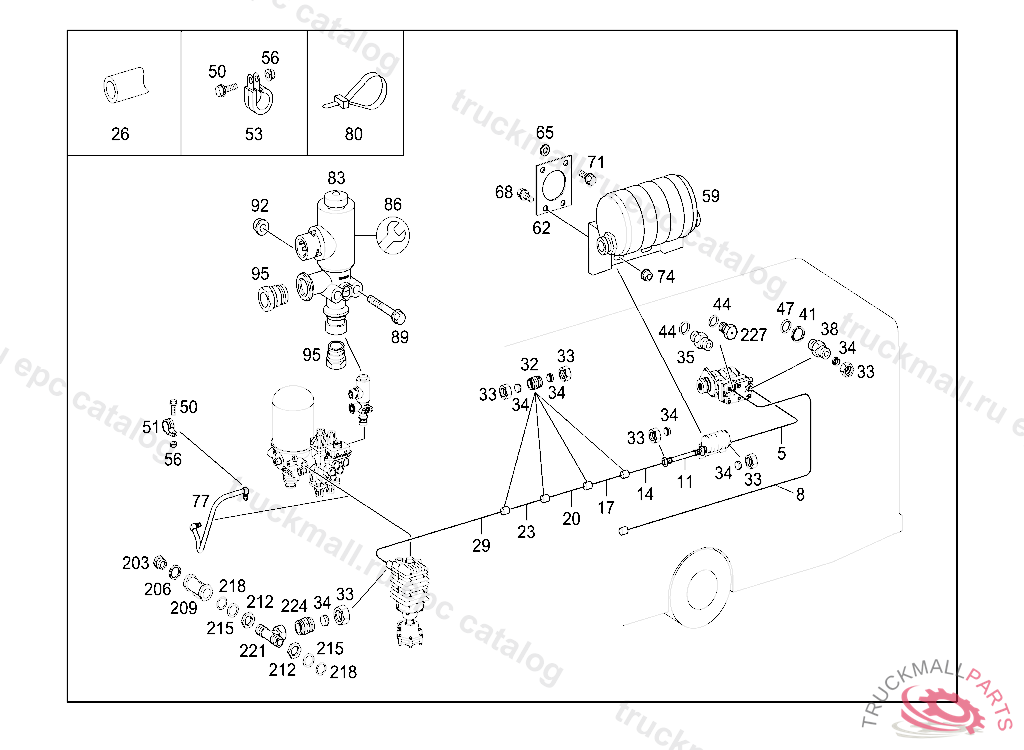

Поз.
Артикул
Описание
5
5
8
11
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
11
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
14
14
14
17
17
17
20
20
LINE
23
23
26
INSULATION DIA., 18MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
29
LINE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.05.2008
29
LINE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.04.2008
32
FITTING BETWEEN THE LINES
33
NUT COMPRESSED AIR LINES
34
CUTTING RINGBL 18
35
TS DOUBLE FITTING SOLENOID VALVE
38
SCREW-IN FITTING , Replaced By: A0029970271
38
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
41
THRUST RING SUCTION LINE TO OIL PUMP
44
SEAL RING LINE CONNECTION
47
SEAL RING LINE CONNECTION
50
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
50
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
51
MOUNTING CLAMP28/15
51
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
53
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/15, Replaced By: A0019951142
53
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 18/20
53
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RS 18/15T0,8
53
CLAMP LINE MOUNTING 15-18 MM,V 207570
53
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
53
CLAMP PIPE LINE TO CONDENSER
53
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
53
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
56
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
56
NUT BRACKET TO FIRE WALL
59
MUFFLER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.08.2009
59
MUFFLER , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.07.2009
62
BRACKET
62
65
WASHER P.T.O. TO TRANSMISSION
68
SCREW BRACKET TO CAB REAR PANEL M 8X20
68
SCREW BRACKET TO SIDE MEMBER M8X20
71
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
74
NUT ENGINE MOUNTING M8
74
NUT HORN TO BRACKET M8
77
LINE
80
LOOM TIE
83
VALVE (3/2-WAY SOLENOID VALVE)
86
REPAIR KIT 3/2-WAY SOLENOID VALVE
89
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
89
SCREW 3/2-WAY VALVE TO BRACKET
92
NUT HORN TO BRACKET M8
92
NUT ENGINE MOUNTING M8
95
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
203
FITTING (CHECK VALVE) NG12/M22X1.5, FROM IDENT NO. WEB 105309 ALSO INSTALLED ON 104831-104930,104931-105130,105261,105268-105295,105307. EXCEPT 105317,105318,105324,105382,105388. FROM IDENT NO. VF9 300289 ALSO INSTALLED ON 300046,300282-300284.
206
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "1"
209
NON-RETURN VALVE CHECK VALVE
212
NUT FITTING TO BRACKET,230274
215
THRUST RING CHECK VALVE TO AIR RESERVOIR
218
SEAL RING LINE CONNECTION
221
T-FITTING CYCLONE PRE-FILTER BOWL
224
FITTING BETWEEN THE LINES
227
PLUGM12X1.5
