Mercedes A3117116810 - Стекло перегородки входа

CONECTO 12 M 628.310

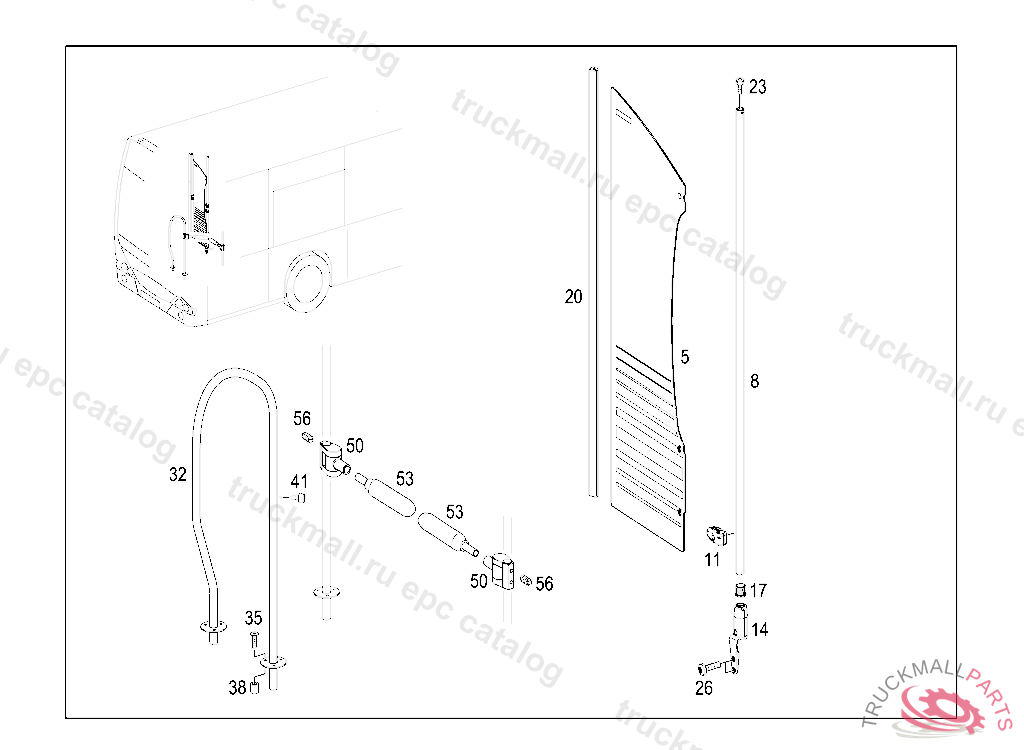

81 APPOINTMENTS - 445 RAILS AT ENTRANCE,FRONT,CENTER AND REAR IL. 1

Поз.
Артикул
Описание
5
A3117116810
8
A3118104246
GRIP RAIL , .......INO.8316INO.9051I.......
11
A6288106114
BRACKET , .......I.......INO.7E87I.......I II
14
A6288106314
BRACKET
17
A6288150617
BUSHING
20
A6289870470
RUBBER SECTION GLASS PANE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
23
A6288150074
SCREW AT GRIP RAIL
26
N000000002250
HEXALOBULAR BOLTM8X30
32
A6288100132
CLAMP FRONT ENTRANCE, .......I.......INO.7E87I.......I II
35
A0009901729
SCREWM8X40
35
A0008150274
SCREWM8X50
38
A3579915840
SPACER TUBE
41
A1079880011
BUFFER
50
A0008151938
MOUNTING , .......I.......I.......INO.7E88I II
53
A6288150665
PAD , .......INO.7E86I.......I.......I II
56
N000417006013
HEADLESS SETSCREW PAWL ADJUSTMENT
