Главная
Mercedes
BUS
CONECTO 12 M
628.310
47 FUEL SYSTEM
190 FUEL TANK AND FUEL-OIL TANK IL. 2

Mercedes A6284750046 - PROTECTION PLATE

CONECTO 12 M 628.310

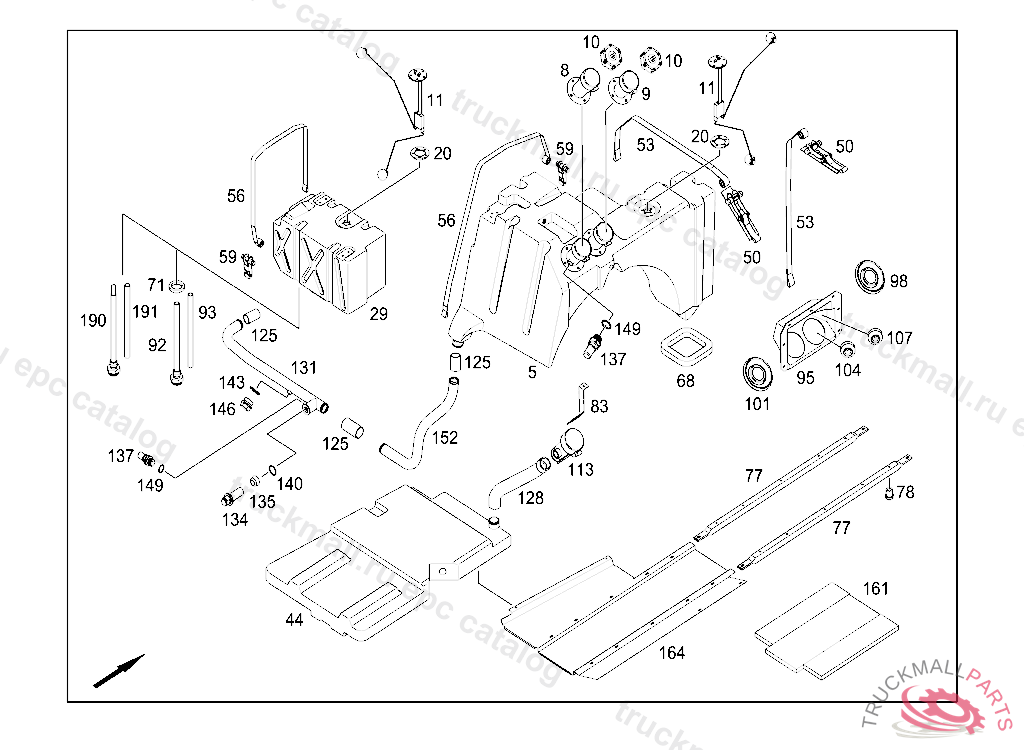

47 FUEL SYSTEM - 190 FUEL TANK AND FUEL-OIL TANK IL. 2

Поз.
Артикул
Описание
5
A6284701503
5
A6284701703
5
A6284700802
FUEL TANK COMPLETE 180L
5
A6284706004
5
A6284702003
5
A6284705904
5
A6284701803
5
A6284700702
FUEL TANK180L, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.04.2009
8
A6284706220
FILLER NECK
8
A6284701520
9
A6284706120
9
A6284706620
10
A6284700905
FILLER CAP
11
A0155421917
SENDER UNIT
11
A0035400717
SENDER UNIT FUEL GAUGE
20
A0004712080
GASKETTO 612 470 22 01
29
A6284703104
FUEL TANK COMPLETE 100L
29
A6284702104
FUEL TANK COMPLETE 100L
44
A6284702304
FUEL TANK COMPLETE
44
A6284701603
50
A0004700240
STRAP25X200
53
A0004700440
STRAP25X1250
56
A0004700640
STRAP25X1400
59
A0004750321
RATCHET TIGHTENER
59
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
68
A0004711181
BOOT230X230
68
A0004710881
BOOT FUEL TANK MOUNTING
71
A0004711880
GASKET FUEL TANK
77
A6284700742
SUPPORT COMPLETE
77
A6284750301
SUPPORT
78
A0009845221
RIVETED NUT
83
A6284768036
BRACKET
92
A6284700427
FEED CONNECTION115 MM
92
A6284700127
FEED CONNECTION150LG., Replaced By: A6284700727
93
A0004293301
LINE FEED & RETURN 10X1 MM, LENGTH AVAILABLE: 3000 MM
95
A6284700047
COVERING
98
A1166900027
COVER PAINT RUN-OFF HOLE IN REAR PANEL TAIL
101
A6289980005
GROMMET61X140 MM
101
A6289980105
GROMMET45X140 MM,107303
104
A1089870044
EXPANSION PLUG
107
A1139870044
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
113
A6284700705
FILLER CAP
125
A6284764526
HOSE60X4X120
128
A6284761026
HOSE
131
A6284704126
134
A6344700006
FUEL STRAINER
135
A3609970135
PLUG
137
A6284710084
FITTINGG 1/2
140
A0159975145
SEAL RING35X3
143
N007603018101
SEAL RING VALVE TO VALVE,K 025179
146
N007604018109
SCREW PLUG
149
N000000001085
SEALING RING. SCREW TO PLUG LONGITUDINAL OIL DUCT,FAN SIDE
152
A6284760807
161
A6284750046
PROTECTIVE PLATE
164
A6284711387
COVERING
190
A6284700927
BLEED CONNECTION10X1
190
A6284700727
BLEED CONNECTION150 LG.
191
A0004295301
LINE
