Главная
›
Mercedes
›
BUS
›
CONECTO 12 M
›
628.310
›
63 SIDE PANELS
›

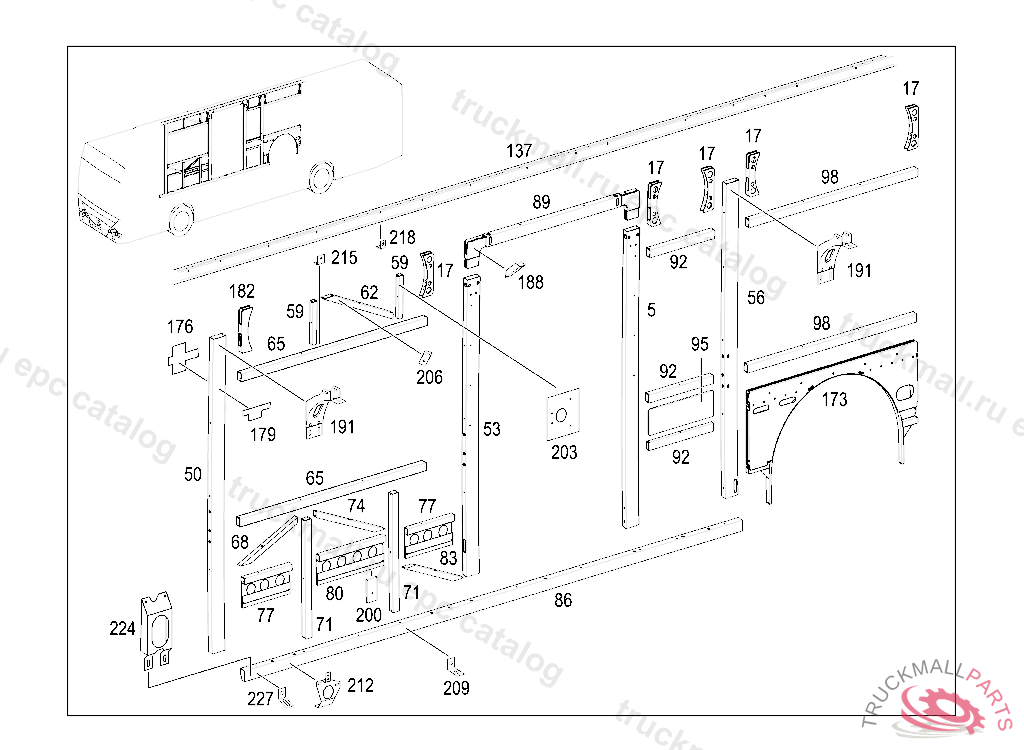

230 RIGHT SKELETON,3 DOORS IL. 2
Mercedes A6286006357 - ZB HALTER
CONECTO 12 M 628.310
63 SIDE PANELS - 230 RIGHT SKELETON,3 DOORS IL. 2
Поз.
Артикул
Описание
5
A6286300110
PILLARNO. 1 + 5
17
A6286341316
REINFORCEMENT TOP
50
A6286305810
PILLAR
53
A6286300210
PILLARNO. 2 + 3
56
A6286301810
PILLAR
59
A6286330205
STRUT
62
A6286330105
STRUT
65
A6286326040
SUPPORT
68
A6286330305
STRUT
71
A6286310110
PILLAR PART
74
A6286331605
STRUT40 X 40 X 2 X 759, TO BE ADAPTED DURING ASSEMBLY
77
A6286323140
SUPPORT
80
A6286326140
SUPPORT
83
A6286330605
STRUT
86
A6286300940
SUPPORT
89
A6286300017
FRAME DOOR,TOP
92
A6286325940
SUPPORT
95
A6286323419
WEB
98
A6286320440
SUPPORT
137
A6286301740
SUPPORT , Replaced By: A6286304739
137
A6286304739
ROOF RACK
173
A6286300527
PANELLING
176
A6286342211
PLATE
179
A6286342311
PLATE
182
A6286342416
REINFORCEMENT
188
A6286021119
STRUT
191
A6286020232
REINFORCEMENT
200
A6286000514
BRACKET
203
A6286006357
BRACKET
203
A6286002257
BRACKET30X20X2X765,5
206
A6286004257
BRACKET
209
A3576026014
BRACKET
212
A6286028376
BRACKET
215
A3056102812
ANGLE
218
A3016145914
BRACKET
224
A6286002957
227
A6286154436
BRACKET
