Mercedes A6288323717 - HEIZROHR PR VL.

CONECTO 12 M 628.310

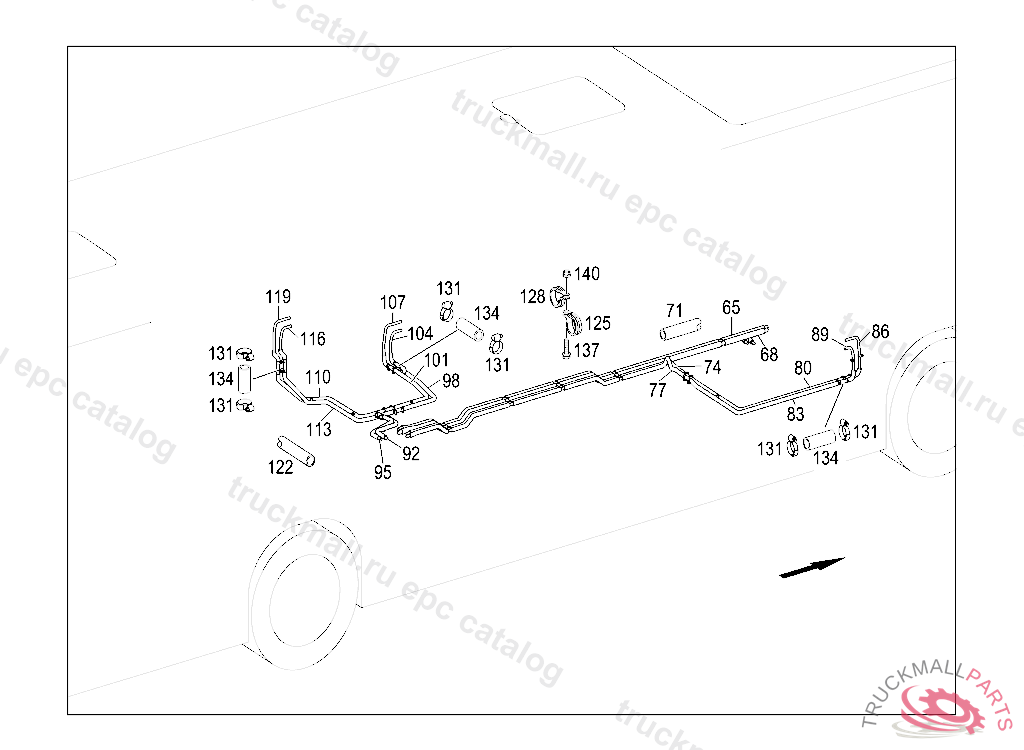

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 7

Поз.
Артикул
Описание
65
A6288323717
PIPE LINE , Replaced By: A6288324215
65
A3118303977
68
A3118304077
68
A6288323817
71
A6288320154
INSULATION DIA., D22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
74
A6288328265
PIPE LINE
77
A6288328365
PIPE LINE
80
A6288320965
HEATER PIPE FEED
83
A6288321065
HEATER PIPE RETURN
86
A6288324364
HEATER PIPE FEED
89
A6288324464
HEATER PIPE RETURN
92
A6288329318
HEATER PIPEL530MM
95
A6288329218
HEATER PIPEL475MM
98
A6288326217
PIPE LINE
101
A6288326117
PIPE LINE
104
A3118320318
107
A3118320218
110
A6288301417
PIPE LINE FEED 1255 MM
113
A6288301517
PIPE LINE REVERSE SPEED 1300 MM
116
A3118320118
119
A3118320018
122
A6288320054
INSULATION DIA., 18MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
125
N916016018201
CLAMP BRAKE HOSE BRACKET
128
A0019951442
MOUNTING CLAMP22/15
128
N000000000326
CLAMP22/15, Replaced By: A0019951442
128
N916016022203
CLAMP DELIVERY AND SUCTION LINES TO FRAME
131
N000000000666
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
134
N000000004968
HOSE18X27X100MM
137
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
140
N913023006002
NUT BRACKET TO FIRE WALL
