Mercedes A6289504933 - ZB KONSOLE / CSE, DS

CONECTO 12 M 628.310

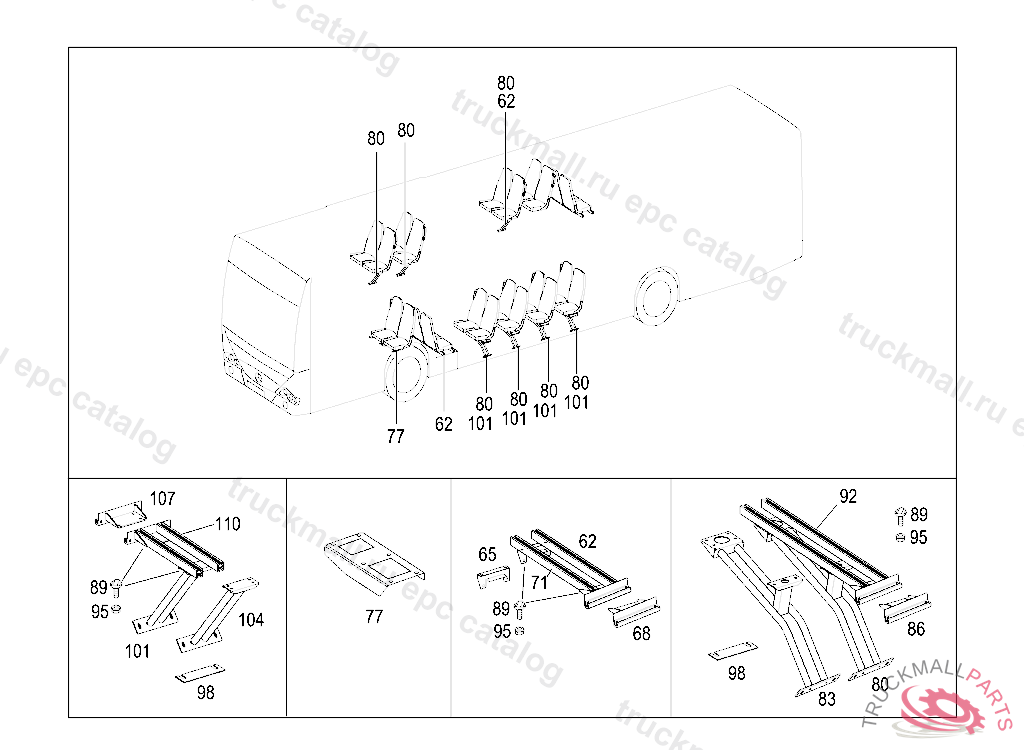

95 SEATS - 010 SINGLE OCCUPANCY SEAT IL. 7

Поз.
Артикул
Описание
62
A6289506720
SEAT FRAMEWORK , NO.7365I.......I.......I.......I.......I....... I
65
A6289512831
CONSOLETO A6289506720, NO.7365I.......I.......I.......I.......I....... I
68
A6289500024
SUPPORT
71
A6289510336
RAIL DOUBLE SEAT 850 MM
77
A6289504933
80
A6289500620
SEAT FRAMEWORK SEAT FRAME, DUAL SEAT, .......I.......INO.7365I.......I.......I....... I .......I.......INO.7E87I.......I II
83
A6289500617
SEAT BASE SEAT FRAME, DUAL SEAT
86
A6289500024
SUPPORT
89
A0009510271
SCREWM8X22
92
A6289510336
RAIL DOUBLE SEAT 850 MM
95
N913023008003
NUT HORN TO BRACKET M8
98
A6289511111
PLATE TOLERANCE COMPENSATION
101
A6289400020
SEAT FRAMEWORK SINGLE SEAT, .......I.......INO.7365I.......I.......I....... I .......I.......INO.7E87I.......I II
104
A6289400017
SEAT BASE
107
A6289500024
SUPPORT
110
A6289410036
RAIL SINGLE SEAT 420 MM
