Mercedes A0028309508 - ZB RADIALGEBLAESE 24

CONECTO 18 M 628.320

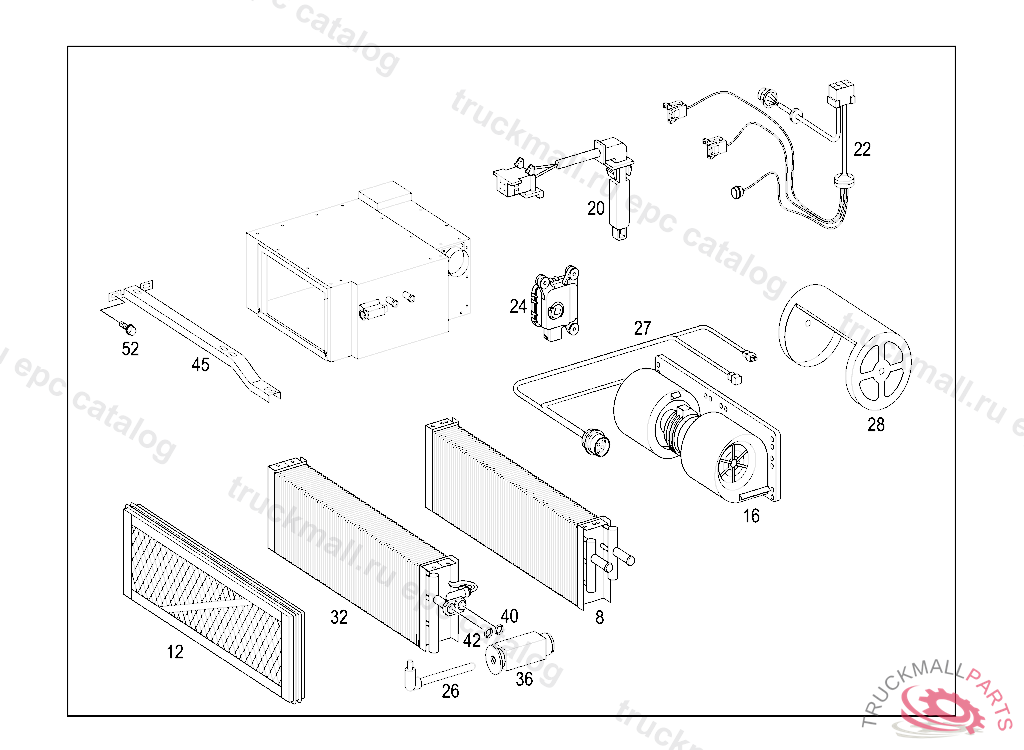

83 HEATING AND VENTILATION - 067 HEATER/AIR CONDITIONING DRIVER'S PLACE OF WORK

Поз.
Артикул
Описание
8
A0038355201
HEAT EXCHANGER
12
A0018351547
FILTER WITH FILTER ELEMENT
16
A0028309508
BLOWER FOR FIRST TIME REPLACEMENT,ALSO ORDERADAPTER CABLE A0008206987, Replaced By: A0038303608
20
A0078200810
TEMPERATURE SENSOR
20
A0018300772
TEMPERATURE SENSORL200MM, Replaced By: A0078200810
22
A0025405505
24
A0068207842
SERVO-D.C. W.GEARBOX
24
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
26
A0018301972
TEMPERATURE SENSOR ICE SENSOR
27
A0008700488
CABLE HARNESS ,105061
28
A0008302143
AIR DISTRIBUTOR
32
A0018307158
EVAPORATOR
36
A0028306084
VALVE
40
A0239971548
SEAL RING
42
A0239971648
SEAL RING
45
A6288350022
SUPPORT HEATER UNIT TO BODY
52
N910143008000
SCREW SPEED SENSOR TO REAR AXLE
999
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
999
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
