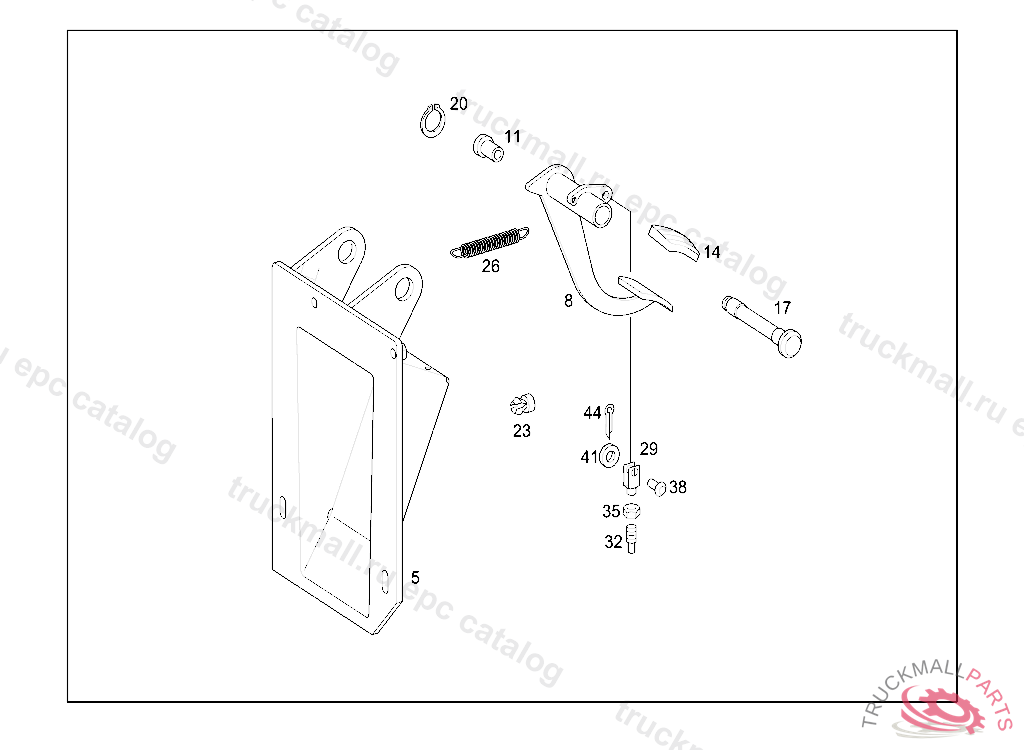

Поз.
Артикул
Описание
5
CONSOLE BRAKE PEDAL
8
PEDAL BRAKE
11
BUSHING , Replaced By: A1242920050
14
PAD CLUTCH PEDAL
17
BEARING BOLT PEDAL BEARING
17
PIN PEDAL BEARING, Replaced By: A6282920274
20
RETAINING RING. LOCK RING BRACKET TO BRACKET
20
LOCK STOP TO BEARING BRACKET
23
STOP CLUTCH PEDAL AND BRAKE PEDAL
26
SPRING CLUTCH-PEDAL/BRAKE-PEDAL RESET
29
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
32
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
32
PISTON ROD BRAKE ACTUATION
35
NUT OPERATING ROD
38
PIN ROD TO BRAKE PEDAL
41
WASHER YOKE TO BRAKE LEVER
41
WASHER PUMP TO CONSOLE
44
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
44
COTTER PIN LEVER TO ROD
