Mercedes A6288320965 - HEIZROHR

CONECTO 18 M 628.320

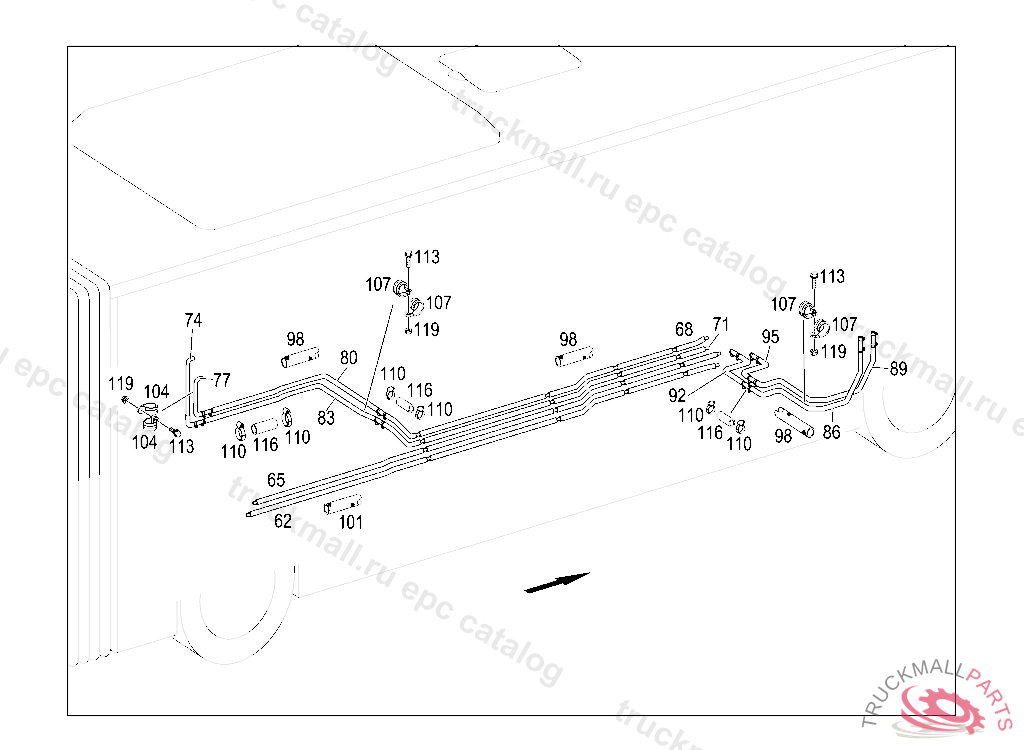

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 9

Поз.
Артикул
Описание
62
A3118320322
65
A3118329626
65
A3118320422
68
A6288320966
HEATER PIPE
71
A6288321066
HEATER PIPE
74
A6288324364
HEATER PIPE FEED
77
A6288324464
HEATER PIPE RETURN
80
A6288321065
HEATER PIPE RETURN
83
A6288320965
HEATER PIPE FEED
86
A6288329922
HEATER PIPEL1165MM
89
A6288329822
HEATER PIPEL1180MM
92
A6288329318
HEATER PIPEL530MM
95
A6288329218
HEATER PIPEL475MM
98
A6288320054
INSULATION DIA., 18MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
A6288320254
INSULATION DIA., 28MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
104
A0019951042
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
104
N000000000324
CLAMP LINE MOUNTING 15-18 MM,V 207570
104
N916016018201
CLAMP BRAKE HOSE BRACKET
107
N000000000326
CLAMP22/15, Replaced By: A0019951442
107
N916016022203
CLAMP DELIVERY AND SUCTION LINES TO FRAME
107
A0019951442
MOUNTING CLAMP22/15
110
N000000000666
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
113
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
116
N900271018017
HOSE18X27X100MM
119
N913023006002
NUT BRACKET TO FIRE WALL
999
A0008320391
CLAMP36-42
