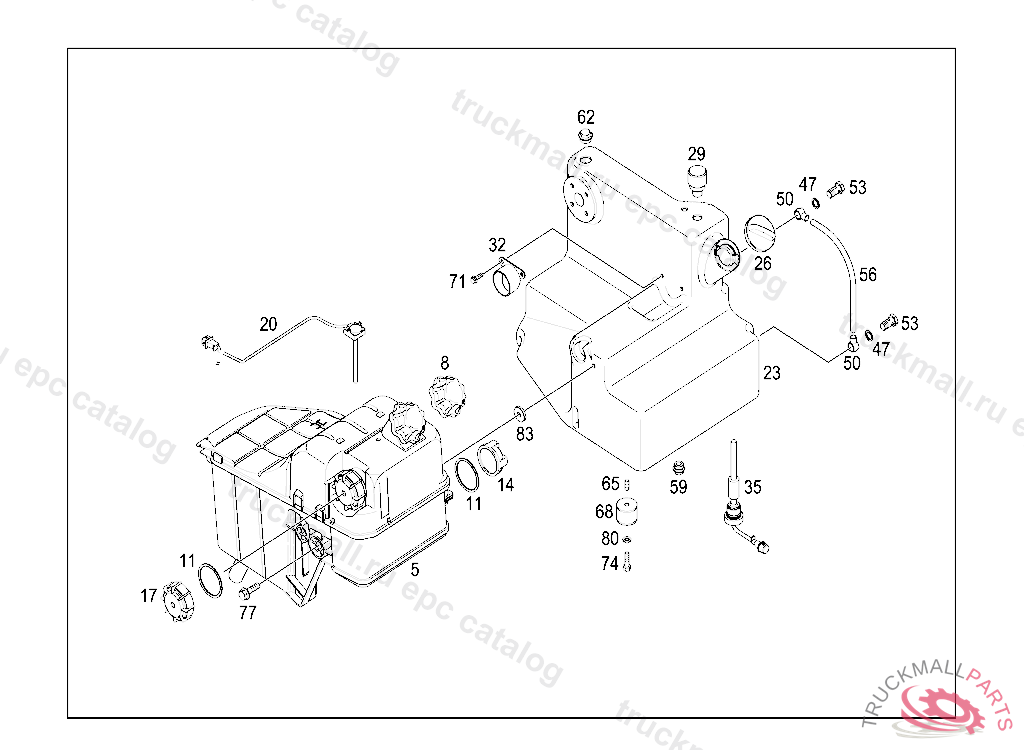

Поз.
Артикул
Описание
5
EXPANSION RESERVOIR COOLING WATER
8
RADIATOR CAP FILLER NECK
11
GASKET
14
RADIATOR CAP WITH VALVE
17
RADIATOR CAP
20
SENDER UNIT COOLING WATER LEVEL INDICATOR
23
OIL TANK
26
CAP OIL REFILLING
29
FILTER OIL TANK
32
BRACKET OIL TANK
35
SENDER UNIT OIL TANK
47
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
50
BANJO UNION OIL TANK
53
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
56
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
59
SCREW PLUG, FILLING
62
SCREW PLUG, FILLING. SCREW AIR RESERVOIR,CONNECTION: "17"
65
THREADED UNIONM 8
68
RUBBER MOUNTING THREAD: M 8
71
SCREW BRACKET MOUNTING M6X10
74
SCREW SPEED SENSOR TO REAR AXLE
77
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
80
WASHER PUMP TO CONSOLE
83
WASHER
