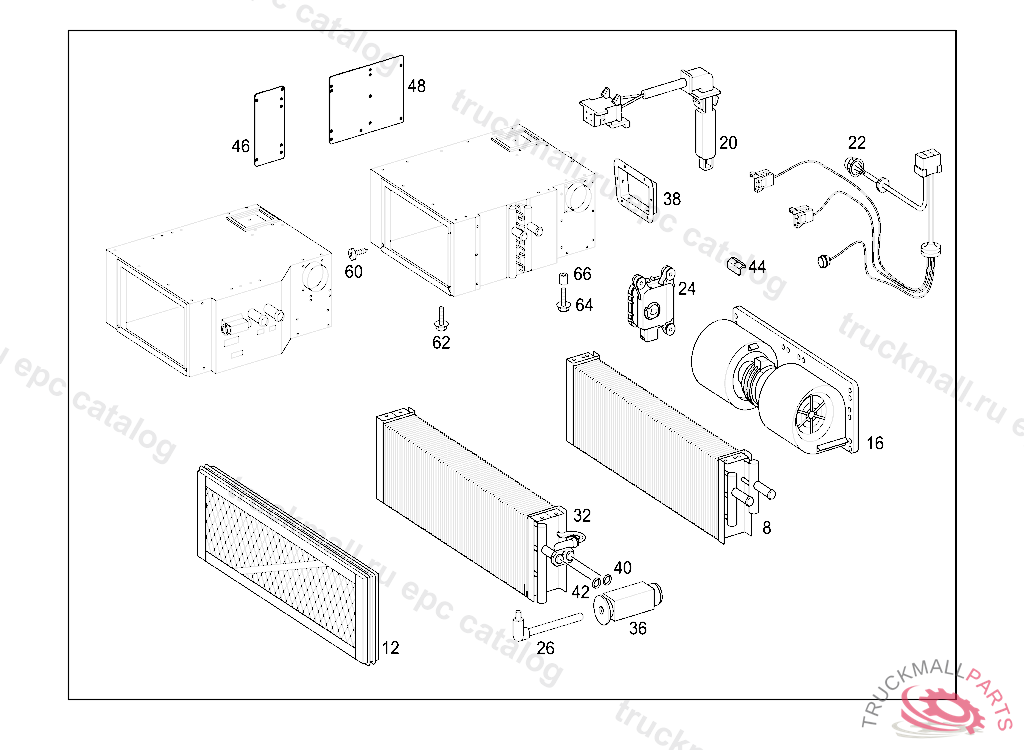

Поз.
Артикул
Описание
8
HEAT EXCHANGER
8
HEATER
8
CONDENSER , Replaced By: A0018302020
12
FILTER WITH FILTER ELEMENT
12
FILTER WITH FILTER ELEMENT
16
BLOWER FOR FIRST TIME REPLACEMENT,ALSO ORDERADAPTER CABLE A0008206987
16
RADIAL BLOWER
16
BLOWER FOR FIRST TIME REPLACEMENT,ALSO ORDERADAPTER CABLE A0008206987, Replaced By: A0038303608
20
TEMPERATURE SENSORL200MM, Replaced By: A0078200810
20
TEMPERATURE SENSOR
22
CABLE HARNESS
22
CABLE HARNESS
22
CABLE HARNESS
24
ELECTRIC MOTOR , Replaced By: A0068207842
24
SERVO-D.C. W.GEARBOX
26
TEMPERATURE SENSOR ICE SENSOR
32
EVAPORATOR
32
EVAPORATOR
36
VALVE
36
VALVE
38
FITTING
40
SEAL RING
40
SEAL I.D.: 10
42
SEAL RING
42
SEAL I.D.: 13
44
CLIP
46
COVER
48
COVER
60
HEXALOBULAR BOLTM5X16
60
SELF-TAPPING SCREW. TAPPING SCREWM4X12, Replaced By: N000000002108
62
SCREW BRACKET TO CAB REAR PANEL M 8X20
64
SCREW SHIFT LEVER TO BRACKET M8X30
66
SPACER TUBE GUIDE BRACKET TO CENTRAL PILLAR,REAR, OR TO ROOF RAIL
999
ADAPTER
999
TEMPERATURE SENSOR ICE SENSOR
999
AIR CONDITIONER DRIVER'S WORK SPACE HEATER UNIT/AIR CONDITIONING UNIT,"KONVEKTA"
