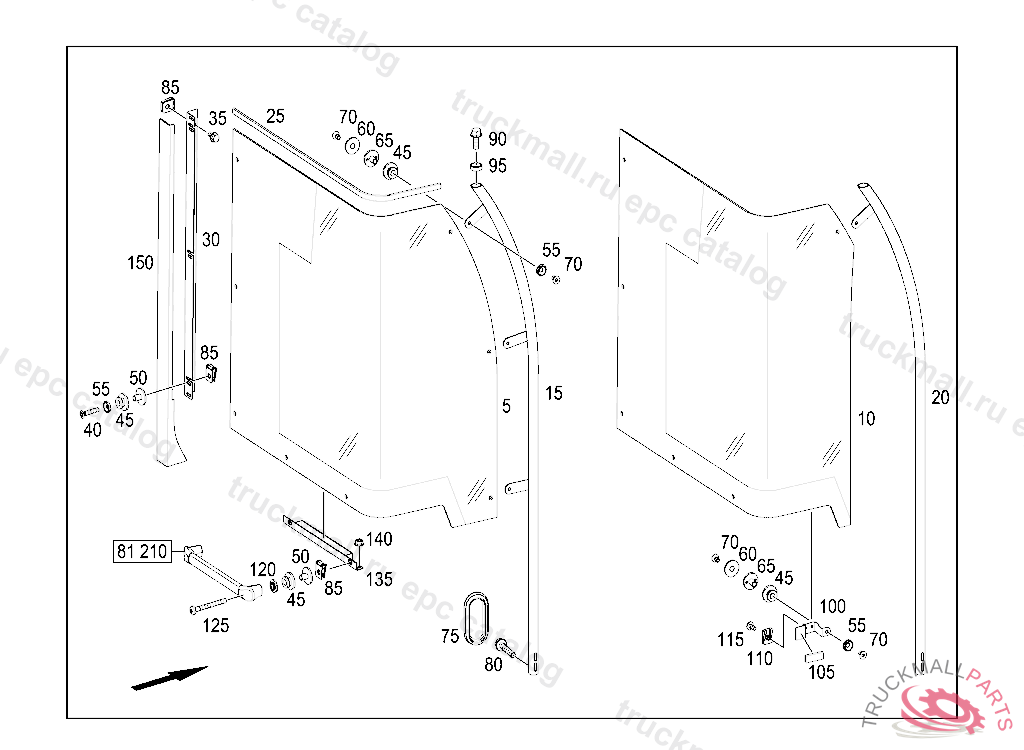

Поз.
Артикул
Описание
5
GLASS PANE PARTITION PANEL,REAR LATERAL
10
GLASS PANE PARTITION PANEL,REAR LATERAL
15
GRIP RAIL TO GLAS PANE,LATERAL, NO.7365I.......I.......I.......
20
GRIP RAIL TO GLAS PANE,LATERAL
25
FRAME
30
ANGLE , FROM IDENT NO. 100921 ALSO INSTALLED IN 100586,100762-100765,100768-100770,100782,100783,100797,100842,100849-100866,100872,100912. EXCEPT 100941-100946,100957-100960.
35
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
35
SCREW , Replaced By: N914146006102
35
HEXAGON HEAD BOLT
40
SCREWM6X30 T30
45
MOUNTING
50
BUSHING
55
WASHER
60
WASHER TO GLAS PANE,LATERAL
65
THREADED CHUCK. PART NAME MISSING
70
HEXAL. SOCKET CSK. BOLTM6X10
70
SCREWM6X10
75
COVERING
75
COVERING
80
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
85
LOCK NUT. SPRING NUT MOUNTING PARTS
90
SCREW BRACKET TO CAB REAR PANEL M 8X20
95
SPACER TUBE
100
BRACKET
105
TOTAL FOAMED MATERIAL USE. PLASTIC SECTION SELF-ADHESIVE ON ONE SIDE 4,0X10 MM, ORDER BY THE METER
110
SOCKET NUT
115
HEXALOBULAR BOLTM5X12
120
THREADED UNION
125
HEXALOBULAR BOLT ROCKER PANEL M6X60
135
BRACKET
140
NUT , Replaced By: N913023006001
150
COVER PLATE
150
COVER PLATE
