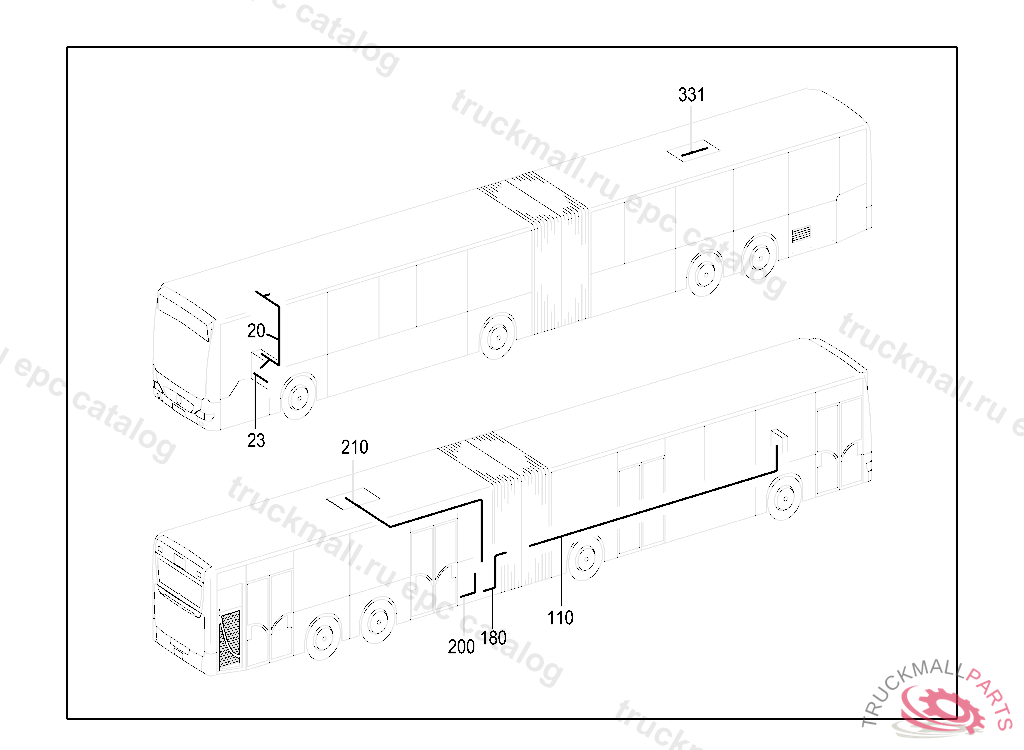

Mercedes A6284404233 - ZB EL.LTG.SATZ

O530 - CITARO GL 20M, 4-TUERER 628.486

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 340 BATTERY SWITCH CABLES,SWITCHBOARD

Поз.
Артикул
Описание
20
A6288200404
ELECTRIC CABLE FROM ELECTRICAL COMPARTMENT TO CONTROL UNIT
23
A6285401409
CABLE HARNESS(FPS1 - E-FACH)
110
A6284409634
CABLE HARNESS FRONT SECTION SUPPLY 04F01--W0202--X0205--X1104
180
A6284404233
CABLE HARNESS REAR SECTION SUPPLY X1108 -- W1004 -- 01F02
200
A6284405133
CABLE HARNESS01S03 -- X0608
210
A6284400335
CABLE HARNESS POWER SUPPLY
210
A6284405535
CABLE HARNESS54F01/54F02 --- X0328
210
A6284402334
CABLE HARNESS SUPPLY, PDB (POWER DISTRIBUTION BOARD) TO AUXILIARY SWITCH PANEL 01F02--W1004--04F04--W0301
331
A6285401309
CABLE HARNESS SECONDARY SWITCHBOARD (FPS4 - SV NST)
999
A6288213205
ELECTRIC CABLE DOOR LOCKING MECHANISM
999
A6288215505
ELECTRIC CABLE EMERGENCY VALVE RESET
