Mercedes A0015710201 - PUMPE

O530 - CITARO GL 20M, 4-TUERER 628.486

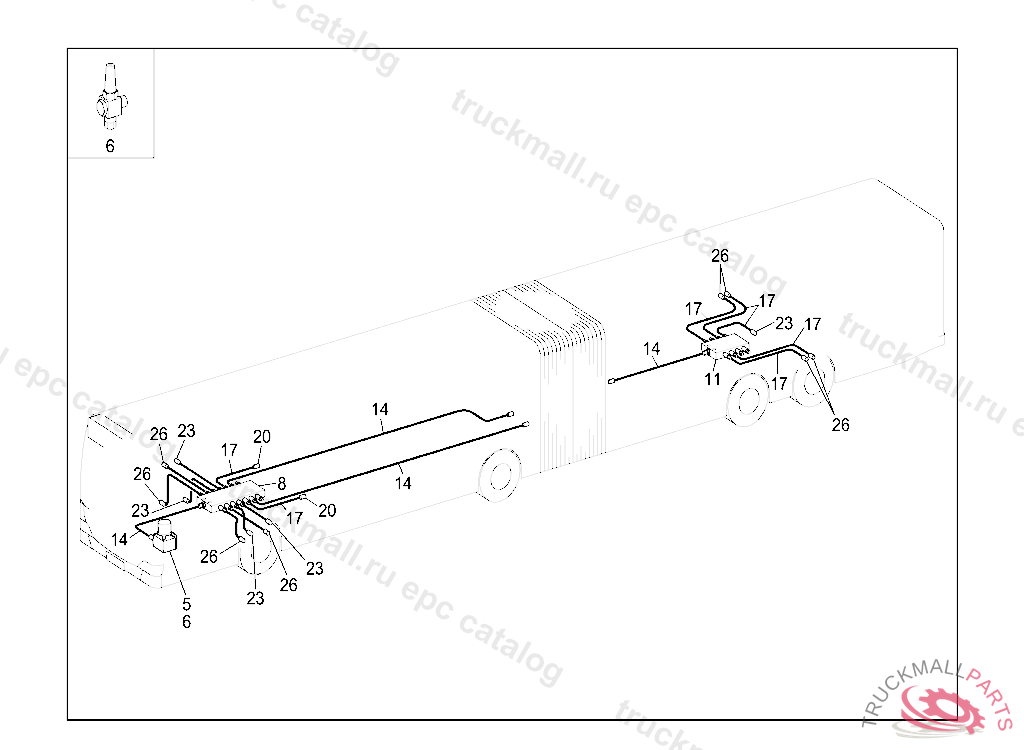

57 CENTRAL LUBRICATION - 001 CENTRAL LUBRICATION IL. 1

Поз.
Артикул
Описание
5
A0015710201
PUMPKFA1-S2+924
6
A0009977710
PRESSURE LIMITING VALVE
8
A0045730320
DISTRIBUTOR FRONT AXLE
11
A0045730920
DISTRIBUTOR
14
A0005732836
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
17
A0009970479
PLASTIC PIPE6X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
A0039970089
COUPLING STRAIGHT VERSION M 8X1
23
A0069974789
PLUG CONNECTIONM 6X1
23
A0049972689
COUPLINGM 6X1, Replaced By: A0069974789
26
A0059970989
COUPLING ELBOW FITTING M 10X1
