Mercedes A0019973673 - SCHWENKVERSCHRAUBUNG

O530 - CITARO GL 20M, 4-TUERER 628.486

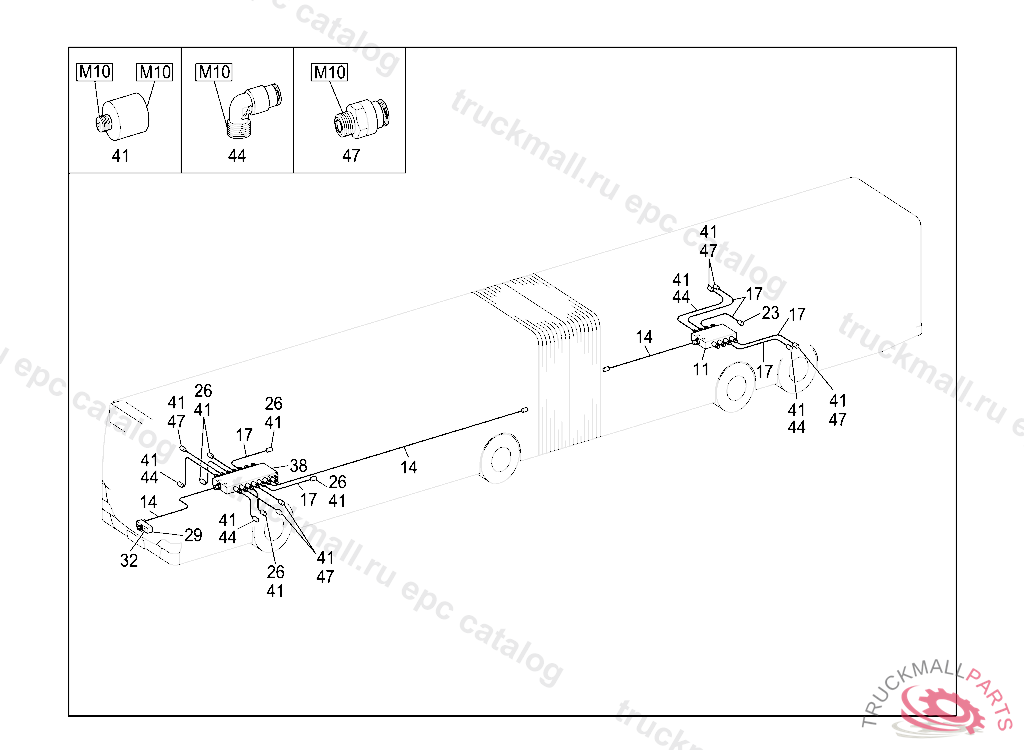

57 CENTRAL LUBRICATION - 001 CENTRAL LUBRICATION IL. 4

Поз.
Артикул
Описание
11
A0045730920
DISTRIBUTOR
14
A0005732836
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
17
A0009970479
PLASTIC PIPE6X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
23
A0049972689
COUPLINGM 6X1, Replaced By: A0069974789
23
A0069974789
PLUG CONNECTIONM 6X1
26
A0059970989
COUPLING ELBOW FITTING M 10X1
29
A0005730142
PLATE GREASE NIPPLE TO SUBSTRUCTURE
32
N071412010200
GREASE NIPPLE
32
N071412010300
GREASE NIPPLE
38
A0045730920
DISTRIBUTOR
41
A0005732032
CONNECTOR LINE CONNECTION
44
A0019973673
SWIVEL FITTINGM10X1
47
A0005735632
CONNECTORM 10X1
