Mercedes A3566028412 - WINKEL BL. 1

O530 - CITARO GL 20M, 4-TUERER 628.486

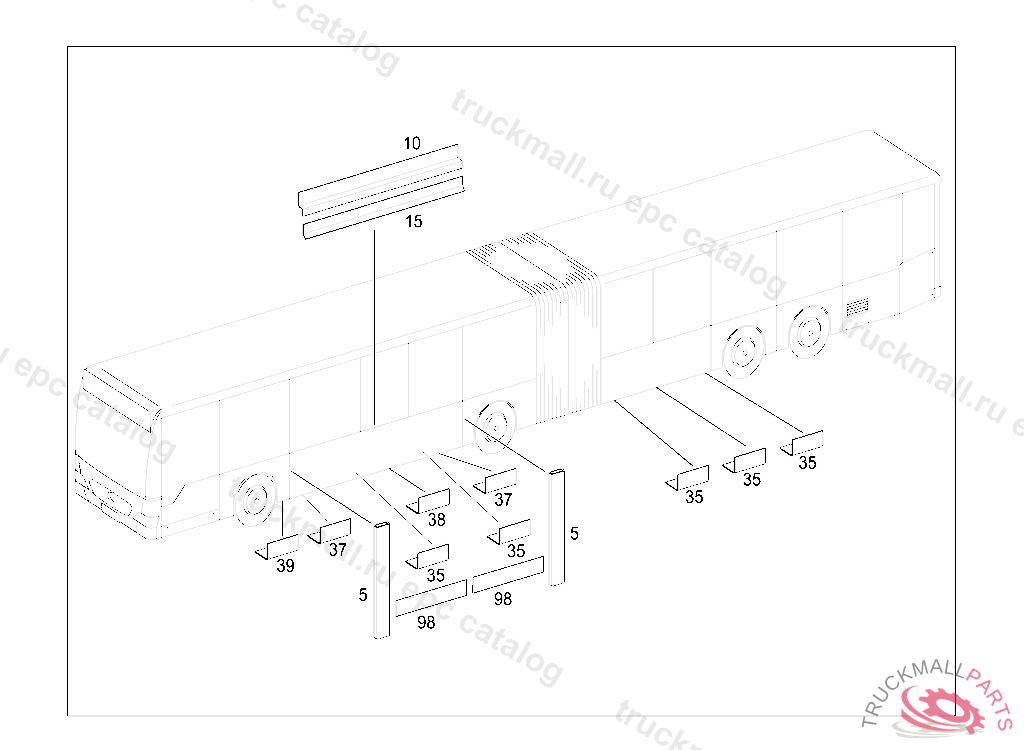

63 SIDE PANELS - 500 SUPPORT AND CONNECTORS FOR FRAME,LEFT AND RIGHT IL. 1
  • Поз.
    Артикул
    Описание
  • 5
    BRACKET
  • 10
    BRACKET PANELLING 4098 MM, TO BE ADAPTED DURING ASSEMBLY
  • 15
    BRACKET PANELLING 2800 MM, TO BE ADAPTED DURING ASSEMBLY
  • 35
    ATTACHMENT ANGLE BRACKET IN FRONT OF FRONT AXLE,RIGHT
  • 35
    ANGLE BEHIND FRONT AXLE,RIGHT
  • 35
    ATTACHMENT ANGLE BRACKET BEHIND FRONT AXLE,RIGHT
  • 35
    ATTACHMENT ANGLE BRACKET700MM
  • 37
    ATTACHMENT ANGLE BRACKET700MM
  • 38
    ATTACHMENT ANGLE BRACKET500X25X20MM
  • 39
    ATTACHMENT ANGLE BRACKET BEHIND FRONT AXLE,LEFT 242MM
  • 98
    CONNECTION LEFT 2950X30X1MM, TO BE ADAPTED DURING ASSEMBLY
  • 98
    CONNECTION2220X30X1MM, TO BE ADAPTED DURING ASSEMBLY
