Главная
›
Mercedes
›
BUS
›
O530 - CITARO GL 20M, 4-TUERER
›
628.486
›

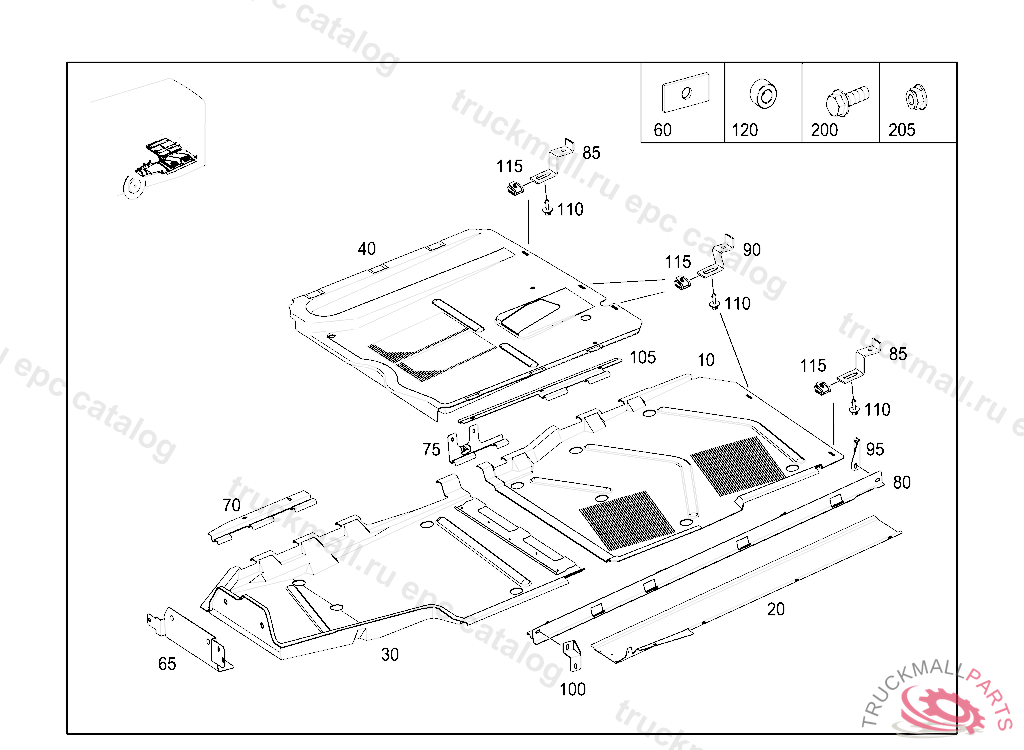

68 COVERING AND LINING
›
450 ENGINE COMPARTMENT ENCLOSURE
Mercedes A6286834508 - ABDECKUNG
O530 - CITARO GL 20M, 4-TUERER 628.486
68 COVERING AND LINING - 450 ENGINE COMPARTMENT ENCLOSURE
Поз.
Артикул
Описание
10
A6286832308
COVERING
20
A6286832808
COVERING
30
A6286834008
COVERING
40
A6286834508
COVERING RIGHT REAR
60
A3565040084
SHIM RADIATOR TO SUBSTRUCTURE
65
A6286802714
BRACKET
70
A6286833714
BRACKET
75
A6286801414
BRACKET , Replaced By: A6286803714
75
A6286803714
BRACKET
80
A6286801514
BRACKET
85
A6286830214
BRACKET
90
A6286830314
BRACKET
95
A6286832514
BRACKET
100
A6286832614
BRACKET
105
A6286830134
RAIL
110
A0009846436
LOCKING PIN. GUIDE
115
A0009840764
MOUNTING PLATE. RETAINING CAM
120
A6289920701
BUSHING
200
N910105006004
SCREW , Replaced By: N914146006102
200
N910105006006
SCREW BRACKET AND CLAMP M6X20
200
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
200
N910105008041
SCREW , Replaced By: N910143008000
200
N910105006002
HEXAGON HEAD BOLT
200
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
200
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
205
N913023008003
NUT HORN TO BRACKET M8
