Главная
›
Mercedes
›
BUS
›
O530 - CITARO GL 20M, 4-TUERER
›
628.486
›
81 APPOINTMENTS
›
445 RAILS AT ENTRANCE,FRONT,CENTER AND REAR

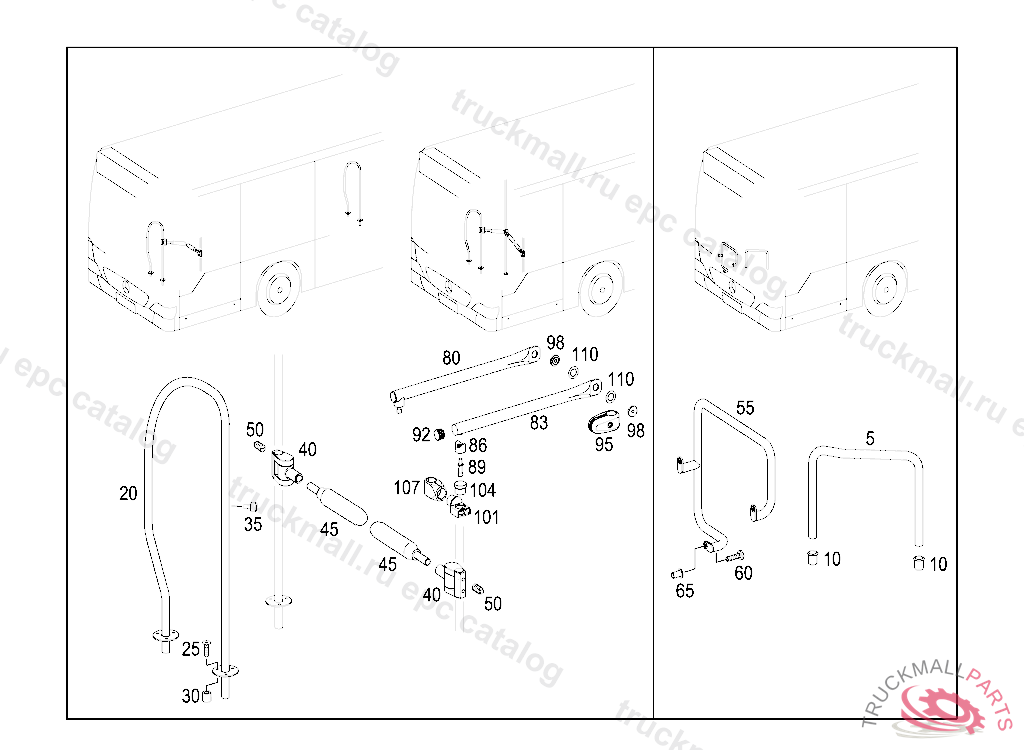

Mercedes A6288150665 - POLSTER, PENDEL
O530 - CITARO GL 20M, 4-TUERER 628.486
81 APPOINTMENTS - 445 RAILS AT ENTRANCE,FRONT,CENTER AND REAR
Поз.
Артикул
Описание
5
A6288150232
CLAMP , .......I.......INO.7E87I.......I II
10
A6289400013
GUIDE
20
A6288100132
CLAMP FRONT ENTRANCE, .......I.......INO.7E87I.......I II
25
A0009901729
SCREWM8X40
30
A3579915840
SPACER TUBE
35
A1079880011
BUFFER
40
A0008151938
MOUNTING , .......I.......I.......INO.7E88I II
45
A6288150665
PAD , .......INO.7E86I.......I.......I II
50
N000417006013
HEADLESS SETSCREW PAWL ADJUSTMENT
55
A3238100650
GRIP RAIL , .......I.......INO.7E87I.......I II
60
N000000002250
HEXALOBULAR BOLTM8X30
65
N913024008104
RIVET NUT. RIVETED NUT CONNECTING PIPE TO CAB CROSS MEMBER
80
A3118109653
GRIP RAIL
83
A6288150072
SWING BARRIER
86
A6288150131
CONSOLE
89
A6280230074
BALL PIN LEFT AND RIGHT
92
A3579970286
PLUG BRACKET, NO.8316INO.7C52I.......I I II
95
A6288106114
BRACKET , .......I.......INO.7E87I.......I II
98
A6289870143
RUBBER SLEEVE
101
A6288100212
BEARING
104
A0009914071
MOUNTING CLIP COVER ATTACHMENT, J 20140210 V 20140210
107
A6288150214
BRACKET
110
A6288110095
INTERMEDIATE LAYER
