O530 - CITARO GL 20M, 4-TUERER
›
628.486
›
81 APPOINTMENTS
›
431 GRAB BARS, MESSAGE BUTTONS, CENTER IL. 1
Mercedes N000000002045 - Болт

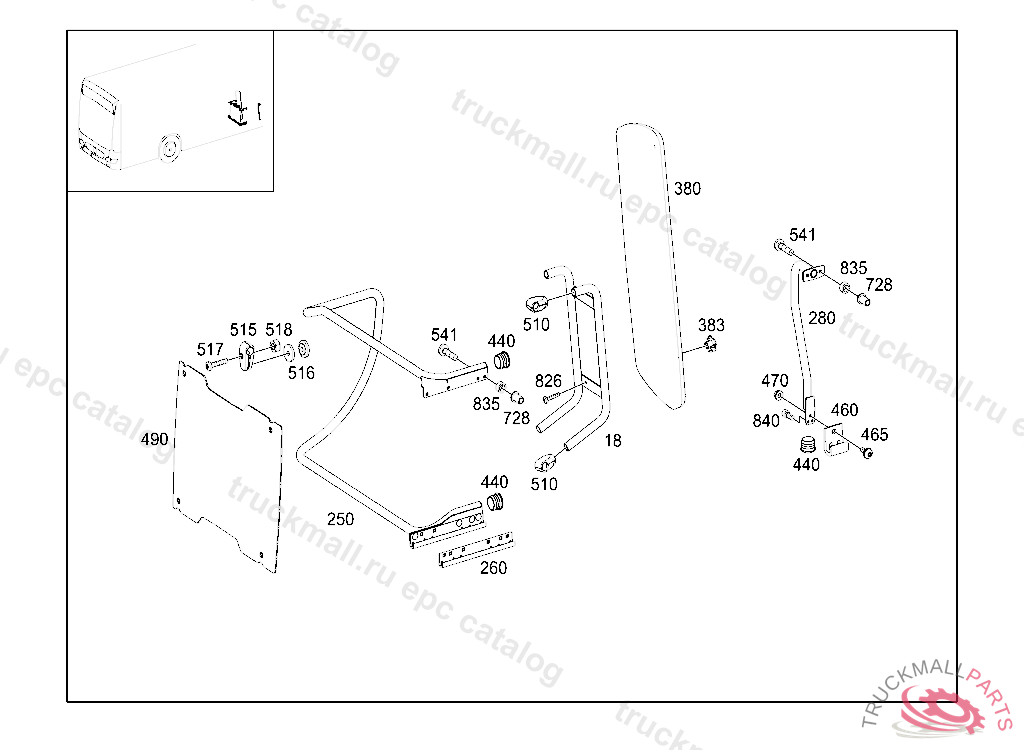

O530 - CITARO GL 20M, 4-TUERER 628.486
81 APPOINTMENTS - 431 GRAB BARS, MESSAGE BUTTONS, CENTER IL. 1
Поз.
Артикул
Описание
18
A3048107352
GRAB RAIL
250
A3048106952
PROTECTIVE BAR LEFT SIDE OF VEHICLE
250
A3048107052
PROTECTIVE BAR RIGHT SIDE OF VEHICLE
260
A6288150327
RETAINING RAIL
280
A3048107853
GRAB RAIL
380
A6289400475
SEAT BACKREST RIGHT SIDE OF VEHICLE
380
A6289400375
SEAT BACKREST LEFT SIDE OF VEHICLE
383
A0009842825
DRIVE-IN NUT. THREADED CHUCK , NOT USED
440
A0039975486
PLUG
460
A6288150627
RETAINING RAIL
460
A6288150127
RAIL , .......INO.7E86I.......I.......I II
465
N000000001875
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X20
470
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
490
A3047118210
GLASS PANE
510
A6288150414
BRACKET , .......I.......INO.7E87I.......I II
515
A6288106114
BRACKET , .......I.......INO.7E87I.......I II
516
A6289870143
RUBBER SLEEVE
517
N000000003123
HEXALOBULAR BOLT
518
N304032008012
HEXAGON NUT. NUT L.H. THREAD
541
N000603010000
SCREWM10X20
541
N000000002250
HEXALOBULAR BOLTM8X30
541
N000000002740
HEXALOBULAR BOLTM10X40
728
N000000005657
RIVET NUTM10X20
826
N000000002045
HEXALOBULAR BOLT COVERING TO CAB FLOOR M 6X30,V 202043
835
A1159912140
SPACER TUBE BELT END FITTINGTO SIDE MEMBER
840
N000912008200
SCREW , Replaced By: N000912008219
