Mercedes A9019900130 - Болт

O 530 LOW ENTRY 12M, 3-TUERER 628.584

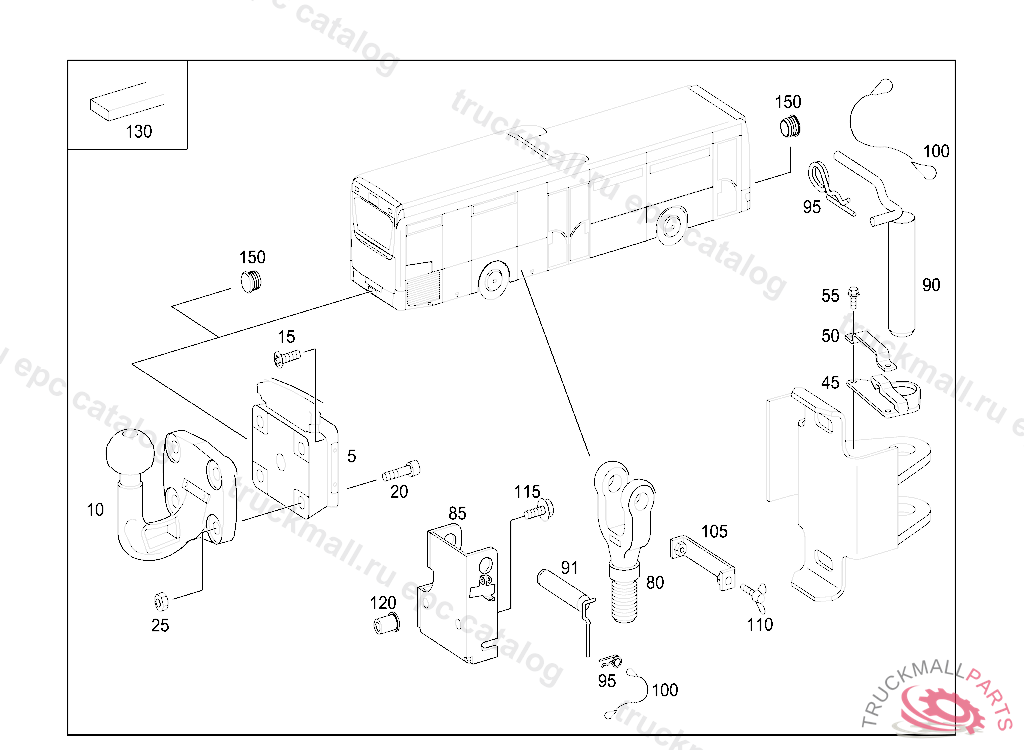

89 VEHICLE ACCESSORIES - 580 TRAILER COUPLING/COUPLING JAW

Поз.
Артикул
Описание
5
A3560050489
ADAOTER VARIO BLOCK
10
A0033152399
TRAILER COUPLING REAR
15
A9019900130
SCREWM 10X50
20
N000912010091
SCREW RUBBER BUFFER TO BODY,627510
25
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
45
A9413150059
CLAMPING PIECE COUPLING PIN
50
A9413150039
CLAMP COUPLING PIN
55
N910105006004
SCREW , Replaced By: N914146006102
80
A6323100062
TOWING ATTACHMENT
85
A6288900088
TAKE-UP DEVICE REAR
90
A6283100007
COUPLING PIN FRONT/REAR
90
A9413100007
COUPLING PIN FOR COUPLING MOUTH
91
A9413100007
COUPLING PIN FOR COUPLING MOUTH
95
N011024004000
SPRING RETAINING PIN RAIL TO BATTERY SUPPORT
100
A0009830615
CORD
105
A6288900079
CLAMP
110
N000316006040
SCREWM6X16
115
N910105008041
SCREW , Replaced By: N910143008000
120
N913024008104
RIVET NUT. RIVETED NUT CONNECTING PIPE TO CAB CROSS MEMBER
130
A0009872123
TOTAL FOAMED MATERIAL USE SELF-ADHESIVE ON ONE SIDE 3X10MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
150
A0019981950
PLUG
