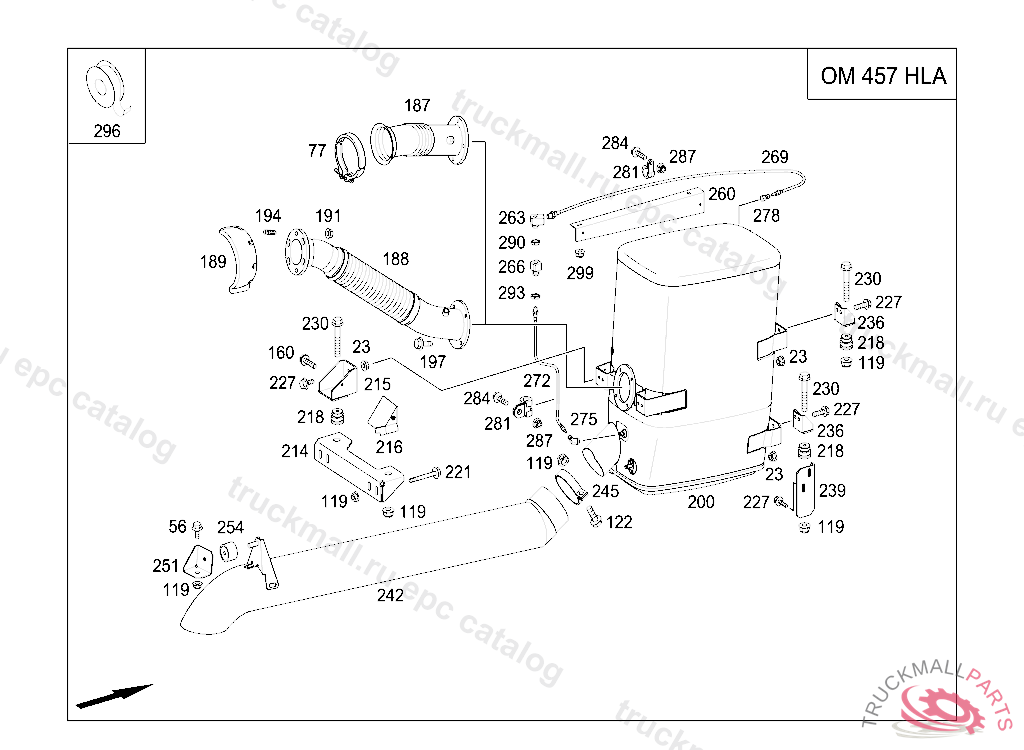

Поз.
Артикул
Описание
23
NUT HORN TO BRACKET M8
56
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
77
CLAMPD148
119
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
119
NUT FOR TAPPING SCREW TURBOCHARGER TO EXHAUST MANIFOLD M10, NOT USED
122
SCREW BRACKET TO SIDE MEMBER M10X35
122
HEXAGON HEAD BOLTM10X35
160
HEXAGON HEAD BOLT
187
EXHAUST LINE WITH CONTROLLED THROTTLE VALVE
188
EXHAUST PIPE
189
SCREENING PLATE , AS OF PRODUCTION BREAKPOINT DATE 01.08.09
191
NUT END PIECE TO EXHAUST PIPE
194
STUD THROTTLE HOUSING TO EXHAUST GAS TURBOCHARGER
197
SCREW STRUT TO CROSS MEMBER M 10X25
200
CATALYTIC CONVERTER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.03.2010
200
CATALYST , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 28.02.2010
200
CATALYTIC CONVERTER , Replaced By: A0014907914
214
BRACKET
215
BRACKET
216
HEAT SHIELD. PROTECTIVE PLATE
218
DASHPOT
221
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
227
SCREW , Replaced By: N910143008002
230
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
236
BRACKET
239
BRACKET
242
TAILPIPE
245
CLAMP , Replaced By: N071555124501
245
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
251
BRACKET EXHAUST SYSTEM
254
RUBBER BUSHING EXPANSION TANK D50X45MM
260
BRACKET
263
BASE PLATE
266
BASE PLATE
269
HOSE HIGH PRESSURE HOSE
272
HOSE HIGH PRESSURE HOSE
275
CONNECTION FITTING
278
CONNECTION FITTING
281
CLAMP
281
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
281
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
284
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
287
NUT RELAY TO BRACKET M5
290
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
290
NUT FITTING TO BRACKET,230274
293
NUT POWER CYLINDER TO BRACKET
293
NUTM24X1.5
296
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
299
NUT COVERING TO CAB FIRE WALL
