Mercedes A6286327514 - TRAEGER f. ZB...L3 +

O 530 LOW ENTRY 13M, 2-TUERER 628.687

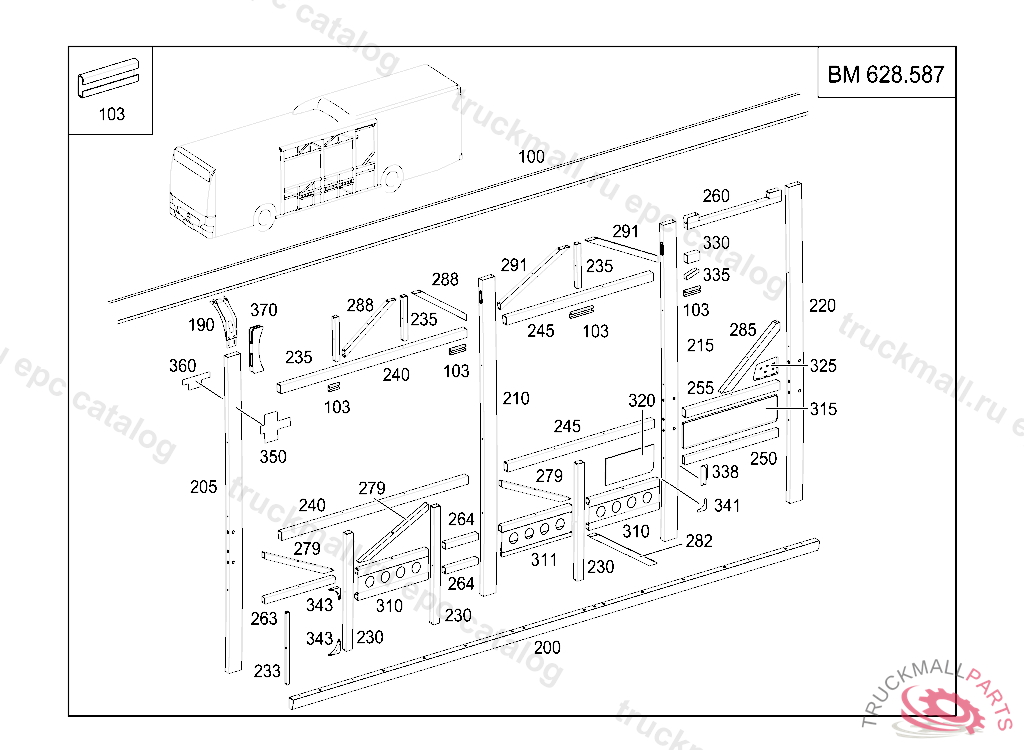

63 SIDE PANELS - 150 LEFT FRAMEWORK IL. 2

Поз.
Артикул
Описание
100
A6286304525
SUPPORT
103
A6286520626
RAIL RIGHT 2328 MM, TO BE ADAPTED DURING ASSEMBLY
190
A6286020232
REINFORCEMENT
200
A6286304625
SUPPORT
205
A6286304110
PILLAR
210
A6286317810
PILLAR PART
215
A6286319410
PILLAR PART
220
A6286304310
PILLAR
230
A6286310110
PILLAR PART
235
A6286330205
STRUT
245
A6286320540
SUPPORT
250
A3116323114
SUPPORT , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.09.2008
250
A3116329214
BEAM , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.10.2008
255
A6286327514
SUPPORT
260
A6286302525
SUPPORT
263
A6286320705
SIDEWALL BRACING
279
A6286330305
STRUT
282
A6286330505
STRUT
285
A6286300028
STRUT
291
A6286330105
STRUT
310
A6286323040
SUPPORT
311
A6286300009
SIDE PANEL GIRDER
315
A6286324719
REINFORCEMENT PLATE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.10.2008
315
A6286323519
WEB , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.09.2008
320
A6286026809
COVERING BEHIND FRONT AXLE,LEFT
325
A6286340831
CONSOLE
330
A6286320331
CONSOLE
335
A6286320135
RAIL
338
A6286311125
REST ANGLE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.10.2008
341
A6286330516
REINFORCEMENT , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.10.2008
343
A3576310032
CONNECTION
350
A6286342211
PLATE
360
A6286342311
PLATE
370
A6286342416
REINFORCEMENT
