Mercedes A0008300459 - ZB ERSATZBRENNER F.T

O580 TRAVEGO 15RH 629.001

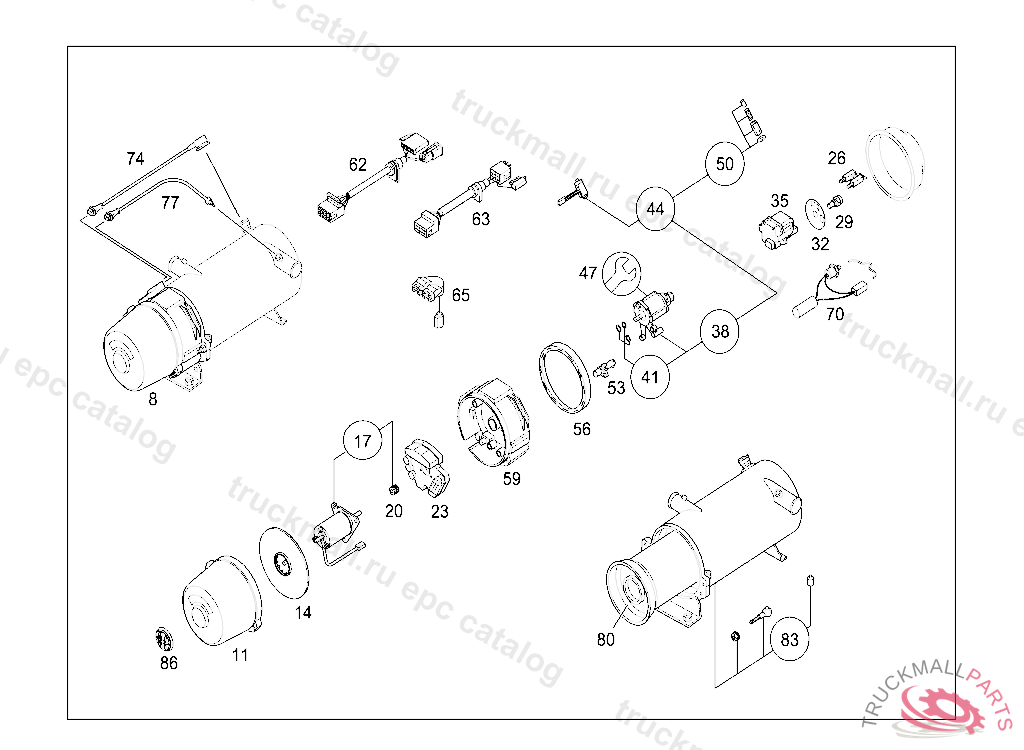

83 HEATING AND VENTILATION - 330 AUXILIARY WARM WATER HEATER IL. 2

Поз.
Артикул
Описание
8
A0008300459
SUBSTITUTE BURNER COMPLETE
11
A0008351735
CAP
11
A0008351235
TRANSMISSION CASE COVER. CAP
14
Q8441328765
ROTORTO A 003 830 00 61
17
A0048208042
ELECTRIC MOTOR
20
A0008330426
COUPLING
23
A0004468929
CONTROL UNITTO A 003 830 00 61
26
A0008352455
IGNITION ELECTRODE
29
A0008301554
NOZZLE
32
A0039905682
WASHER
35
A0008221521
PULSE GENERATOR
35
A0008213363
IGNITION COIL
38
A0028351364
PUMP WITH BIO-DIESEL
38
A0024703894
FUEL PUMP COMPLETE
41
A0008303398
TS SEALING FRAME PARTS KIT TO A 002 470 38 94, Replaced By: A0028350298
41
Q8441328774
PARTS KIT
41
A0028350298
SEALING RING PARTS KIT TO A 002 470 38 94
44
A0048208810
ELECTR.VALVE. SWITCH
47
A0005860783
REPAIR KIT
50
A0008353198
SEAL
53
A0018353906
FLAME CONTROLLER
56
A0008350713
RETAINING RINGTO A 003 830 00 61
59
A0008355340
HOUSING
62
A0005460715
ELECTRIC CABLE
63
A0005462215
ELECTRIC CABLE
65
A0005460815
ADAOTER
70
A0038309261
HEATER CARTRIDGE. HEATER UNIT ADDITIONAL HEATER
70
A6288304835
AUXILIARY HEATER RETROFIT KIT JET CARRIER PREHEATING WITH THERMOSTAT TO A 002 470 38 94
74
A0008358279
TEMPERATURE LIMITER. THERMOSTAT
77
A0008303972
TEMPERATURE SENSOR WATER INLET
80
A0008350108
BURNER INSETTO A 003 830 00 61, Replaced By: A0008352169
80
A0008352169
BURNER INSERTTO A 003 830 00 61
83
A0008350822
HEAT EXCHANGERTO A 003 830 00 61
86
A0008352618
GRILLE
