Mercedes A0029881642 - Замок

O580 TRAVEGO 15RH 629.001

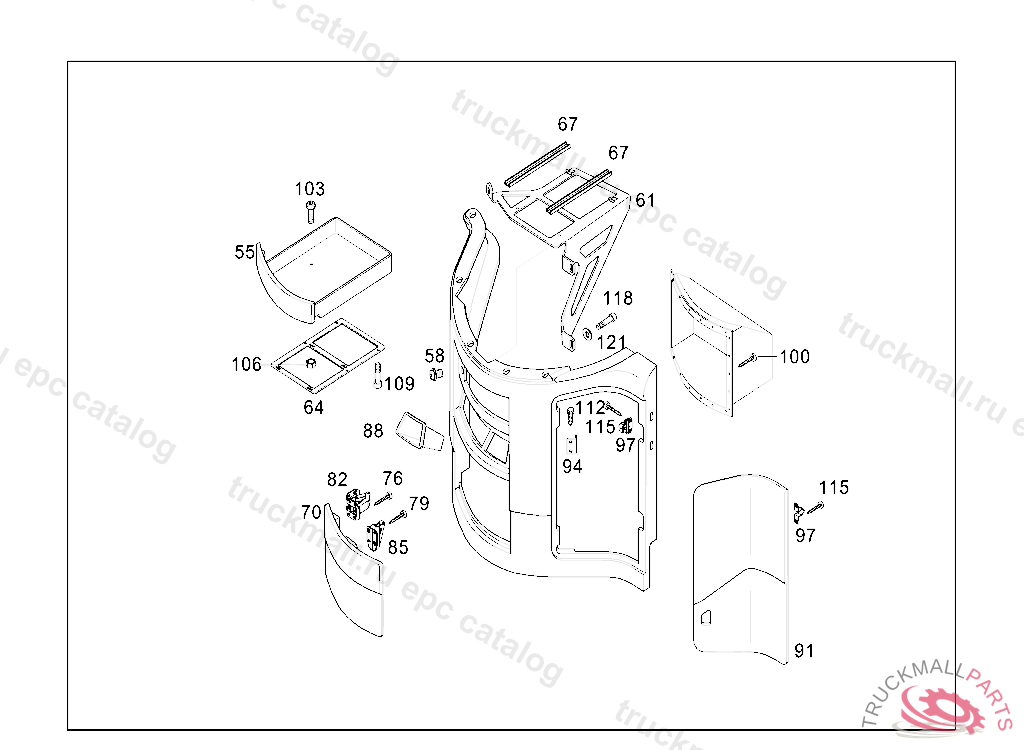

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 4

Поз.
Артикул
Описание
55
A6295850010
DRAWER WITH COVER
58
A6299800130
FASTENER ALL-METAL
61
A6296800314
BRACKET DRAWER
64
A6296820186
SUPPORT DRAWER
67
A6299840036
GUIDE DRAWER
70
A6296800190
COVERING STOWAGE COMPARTMENT
76
N007981003246
SHEET METAL SCREW BRACKET TO CAB FLOOR
79
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
82
A6296800051
HINGE
85
A6296830085
SPRING
88
A6296800052
PIGEONHOLE SPECTACLE SHELF
91
A6296800090
COVERING FUSE BOX
94
A6296810712
ANGLE
97
A0029881642
FASTENER
100
N007981003246
SHEET METAL SCREW BRACKET TO CAB FLOOR
103
N007985004126
SCREW WIPER PULSE SENDER UNIT TO APPARATUS PLATE
106
N000934004006
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
109
N000084004151
SCREW ,374026
112
N007981002218
SHEET METAL SCREW TYPE PLATE,K 262628
115
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
118
A0039908912
SCREWM6X16
121
N009021006209
WASHER FRAME MOUNTING
999
A0009870712
BASE RAIL EDGE GUARD SECTION, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
A0019907291
CLIP FASTENERM5
999
A0029885081
FASTENER BUTTON
999
A0059909340
WASHER
999
A3028120034
SPRING
999
A6294620129
CLAMPING PIECE PANELLING
999
A6296800414
BRACKET
999
A6296870214
BRACKET
999
A6296890085
PANELLING FRONT COVER
999
A9424600895
COVERING STEERING COLUMN PANELLING, NO.5B21I.........I.........I I II
999
N910105005010
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
