Главная
›
Mercedes
›
BUS
›
O580 TRAVEGO 15RH
›
629.001
›
47 FUEL SYSTEM
›
060 FUEL LINES AND BREATHING

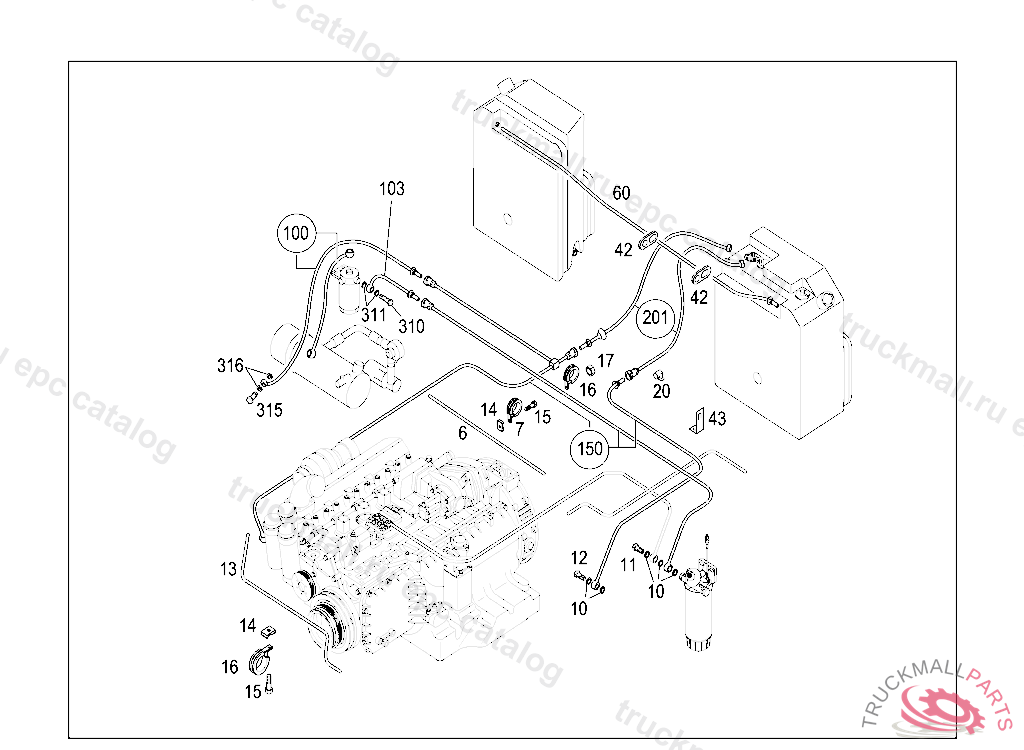

Mercedes A6294700764 - LU KST.LTG SATZ,O580
O580 TRAVEGO 15RH 629.001
47 FUEL SYSTEM - 060 FUEL LINES AND BREATHING
Поз.
Артикул
Описание
6
A6294760137
BRACKET
7
N916016008201
CLAMP LINE MOUNTING
10
N007603016103
SEAL RINGTO 006 997 00 72
11
N915047012205
HOLLOW SCREW FUEL LINE TO FUEL FILTER
12
N915036012101
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
12
N000000004751
SCREW. BANJO BOLT AIR RESERVOIR,CONNECTION: "33",4 872664
13
A6294760237
BRACKET
14
A0029942145
LOCK. NUT , Replaced By: A0039941745
15
N910105006006
SCREW BRACKET AND CLAMP M6X20
16
A0009950836
CLAMP10/15
17
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
20
A0109883378
RETAINING CLIP
42
A0008320896
GROMMET
43
A6294310940
BRACKET
60
A6294760001
LINE
100
A6294701364
LINE
103
A6294701464
LINE
103
A6294701564
LINE
150
A6294700764
LINE FEED AND RETURN
201
A6294700464
LINE FEED AND RETURN
310
N915036010200
HOLLOW SCREW
311
N007603014102
SEALING RING. SEAL RING ENGINE BREATHING
315
N915036006200
HOLLOW SCREW BREATHER LINE TO HEAT EXCHANGER
316
N007603010110
SEAL RING PNEUMATIC VALVE
