Главная
›
Mercedes
›
BUS
›
O580 TRAVEGO 15RH
›
629.001
›
61 SUBSTRUCTURE
›

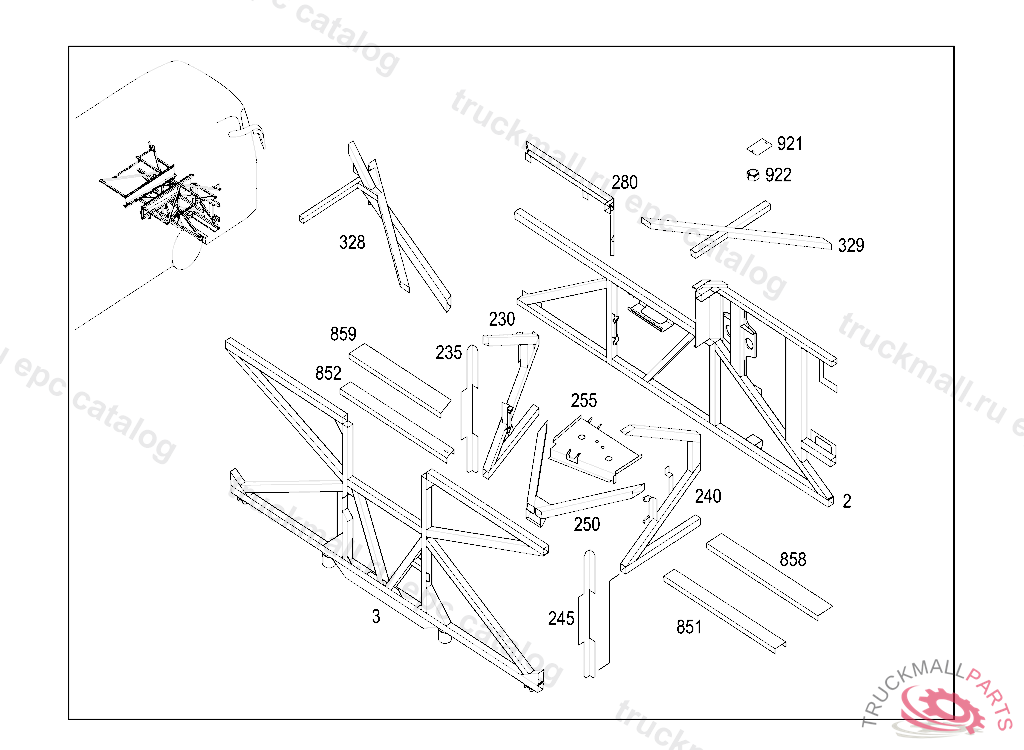

120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 2
Mercedes A6296100823 - ZB TRAEGER_RT.UNT ZW
O580 TRAVEGO 15RH 629.001
61 SUBSTRUCTURE - 120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 2
Поз.
Артикул
Описание
2
A6296105117
CROSS MEMBER2,WEB 629001 13 520219
2
A6296103817
CROSS MEMBER2,WEB 629001 13 520218
3
A6296103317
CROSS MEMBER3
3
A6296103017
CROSS MEMBER3, Replaced By: A6296103317
230
A6296102309
SUPPORT LEFT
235
A6296115812
ANGLE
240
A6296102209
SUPPORT RIGHT
245
A6296115912
ANGLE
250
A6296100823
SUPPORT BOTTOM
255
A6296107808
COVERING BETWEEN CROSSMEMBERS 2 AND 3 CENTER
280
A6296101017
CROSS MEMBER TOP LEFT 2,WEB 629001 13 520218
280
A6296105217
CROSS MEMBER TOP LEFT 2,WEB 629001 13 520219
328
A6296103323
SUPPORT TOP LEFT
329
A6296103223
SUPPORT TOP RIGHT
851
A6296121110
SUPPORT847MM
852
A6296121210
TUBE. SUPPORT810MM
858
A6296122410
TUBE847MM
859
A6296122310
TUBE. SUPPORT696MM
921
A6296160389
COVER PLATE120X80MM
922
N913023006002
NUT BRACKET TO FIRE WALL
