Mercedes A6296900107 - ZB ABDECKUNG VORN/TE

O580 TRAVEGO 15RH 629.001

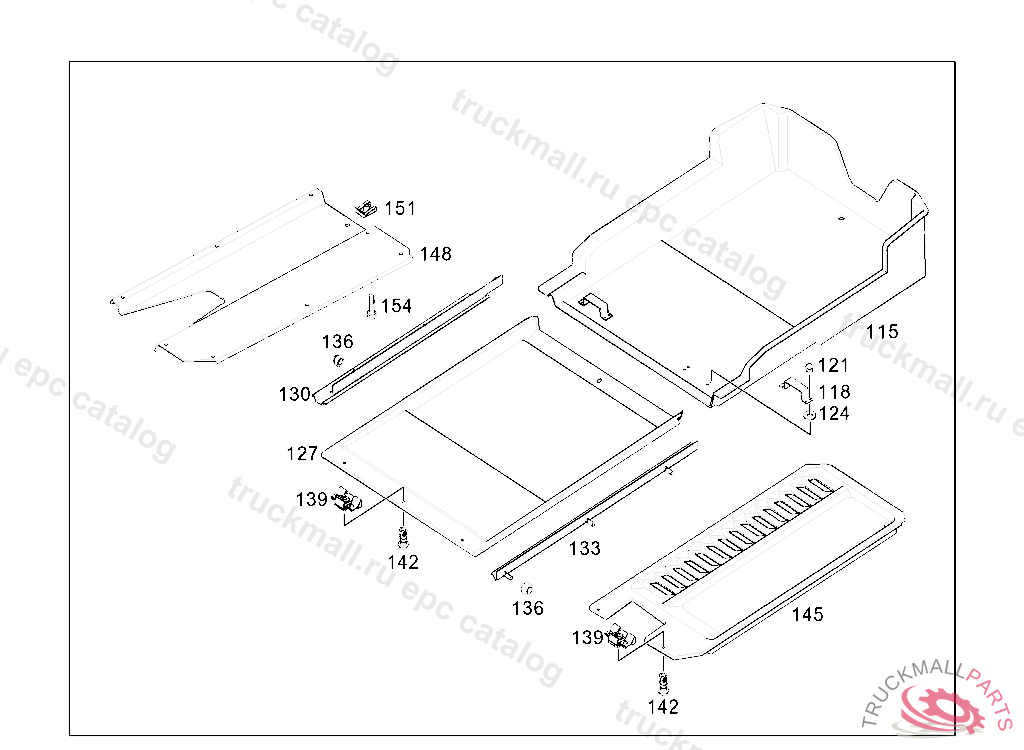

68 PANELLING AND LINING - 060 INSULATION IL. 6

Поз.
Артикул
Описание
115
A6296900107
COVERING FRONT
115
A6296900007
COVERING FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
118
A6296930014
BRACKET FRONT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 19.05.2011
121
A0039909397
BLIND RIVET FRONT 4,8X12,70MM
124
A0069900140
WASHER FRONT
127
A6296930517
COVERING ENGINE
130
A6296900220
RAIL LEFT
133
A6296900320
RAIL RIGHT
136
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
139
A0006940058
CLAMP
139
A0109886478
CLIP , Replaced By: A0006940058
142
A0009845836
PIVOT9X15MM
145
A6296930617
COVERING RADIATOR COVERING
148
A6296930317
COVERING EXHAUST MUFFLER COVERING
151
A0039941545
NUT
154
N910105008041
SCREW , Replaced By: N910143008000
999
A0006820144
INSULATION1000X1000X3MM
999
A0006827144
INSULATION1000X1060X40MM
999
A6296842283
INSULATION FIBREGLAS MAT, ABMESSUNG ANGEBEN
