Mercedes N304017008043 - БОЛТ М8

O580 TRAVEGO 15RH 629.001

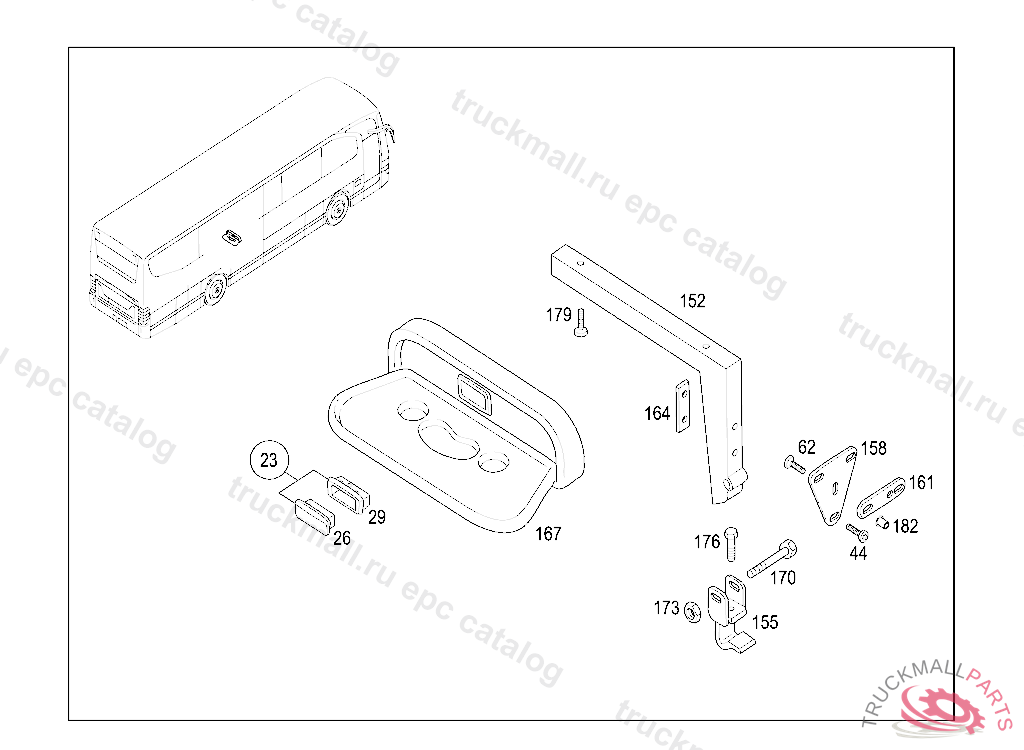

71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS IL. 2

Поз.
Артикул
Описание
23
A6298101130
ASHTRAY TOTAL RANGE OF DELIVERY
26
A6298130158
COVER
29
A6298130258
HOUSING
44
A0009901729
SCREWM8X40
44
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
44
A0009901129
SCREWM 8X22, T40
62
A0009901729
SCREWM8X40
62
N910105008010
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
62
A0009901429
SCREWM 6X35
152
A6297100013
FRAME
155
A6297100236
BRACKET
158
A6297110511
PLATE
161
A6297110611
PLATE
164
A6297110711
PLATE , Replaced By: A6297550111
164
A6297550111
PLATE
167
A6297101801
PARTITION PANEL
170
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
170
N304017008043
SCREW VALVE TO BRACKET M 8X55
173
N913023008003
NUT HORN TO BRACKET M8
176
N304017008010
SCREW
176
N910105008039
SCREW , Replaced By: N910143008002
179
A0009901829
SCREWM8X75T40
182
A0009844821
RIVETED NUTM8X16
