Mercedes A0004774308 - ОТРАЖАТЕЛЬ

O580 TRAVEGO 15RH 629.001

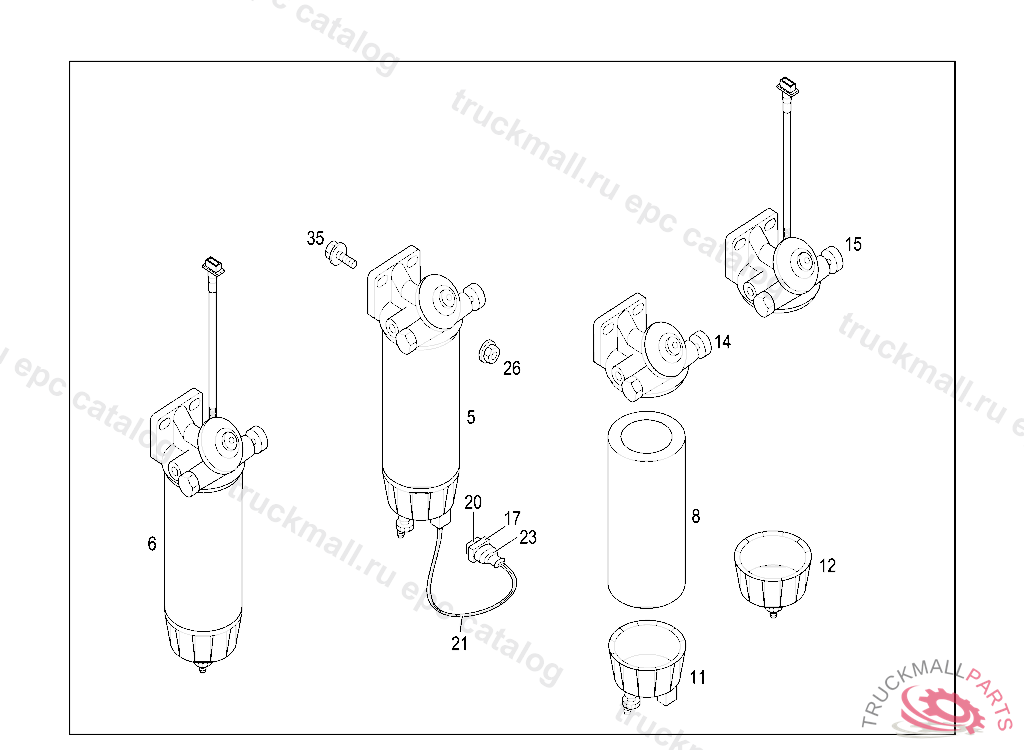

47 FUEL SYSTEM - 150 FUEL PRE-FILTER AND MAIN FILTER,HAND PUMP

Поз.
Артикул
Описание
5
A0004700069
SEPARATOR WATER SEPARATOR, Replaced By: A0004700469, +001A9304700181, +001A9304750240
6
A0004700469
SEPARATOR (WATER SEPARATOR), TO BE ADAPTED DURING ASSEMBLY
8
A0004771302
FUEL FILTER
11
A0004772016
FILTER BOWLTO 000 470 00 69
12
A0004772516
FILTER BOWL
14
A0004774308
FILTER HEAD , UNTIL PRODUCTION BREAKPOINT DATE 08/02
15
A0004774508
FILTER HEAD. COVER
17
A0305454428
PLUG HOUSING. PLUG BIPOLAR
20
A0355458328
PLUG
21
A9405460014
ELECTRIC CABLETO 000 470 00 69
23
A0005452939
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
26
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
35
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
