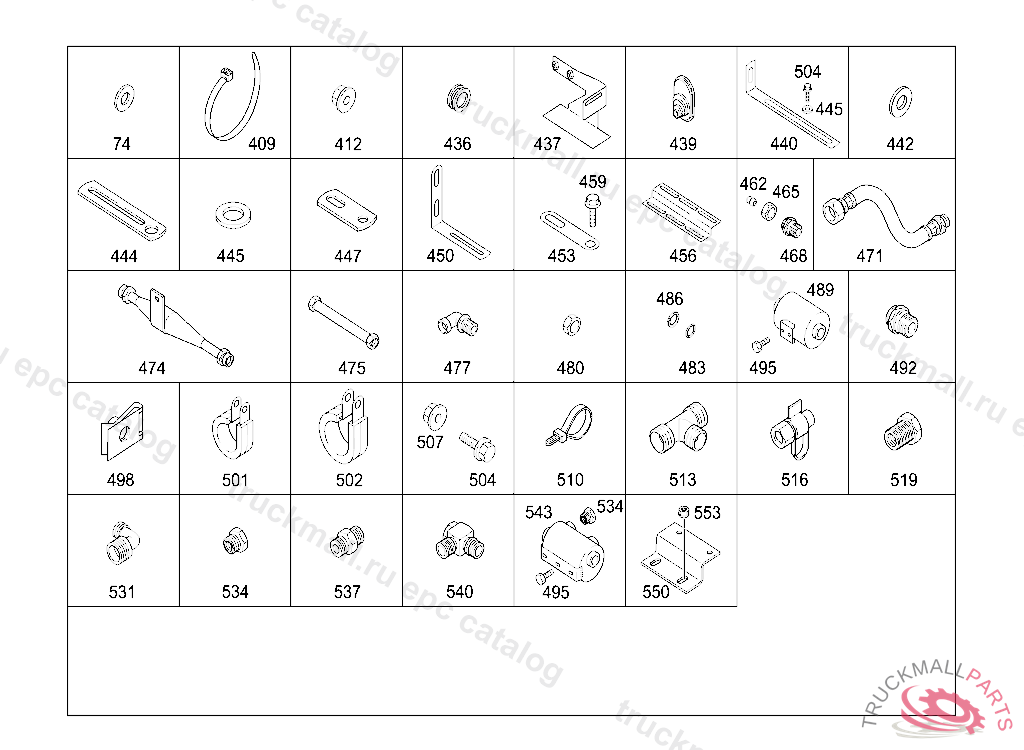

Поз.
Артикул
Описание
74
WASHER LINE MOUNTING 5,3
74
WASHER , Replaced By: N009021008213
74
WASHER LINE MOUNTING
409
CABLE TIE LINE MOUNTING 375X8.4MM
412
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
412
NUT BRACKET TO FIRE WALL
436
GROMMET FOR CABLE HARNESS DIA.: 14-20MM
436
GROMMET FOR CABLE HARNESS DIA.: 7-10MM
437
BRACKET AIR RESERVOIR
439
CABLE PASSAGE FOR CABLE HARNESS DIA.: 18MM (100X75MM)
440
BRACKET
442
LOCKS 18
444
BRACKET LINE MOUNTING
445
WASHER
445
WASHER EXTENSION TO REAR AXLE CARRIER, A 20130123
445
WASHER PUMP TO CONSOLE
445
WASHER LINE MOUNTING
445
WASHER , Replaced By: N009021008213
447
SHACKLE LINE MOUNTING
450
BRACKET
453
BRACKET DELIVERY AND SUCTION LINES
456
RAIL LINE MOUNTING 115 LG.
456
"Z" SECTION60MM, Replaced By: A6279850349
459
SCREW EXHAUST PIPE,FRONT,ON FLYWHEEL HOUSING
459
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 16X25
462
GLAND (DELIVERY AND SUCTION LINE) BL15
462
CUTTING RINGBL 18
462
GLANDBS6
465
NUT LINE CONNECTIONS AL 15
465
UNION NUT
465
NUT COMPRESSED AIR LINES
465
UNION NUT LINE MOUNTING
468
CONNECTION FITTING , Replaced By: N003902018002
468
CONNECTION FITTING LINE CONNECTIONS
471
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
471
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
474
MUFFLER AT AIR COMPRESSOR
474
MUFFLER FROM AIR COMPRESSOR TO PRESSURE REGULATOR,095094 UP TO IDENT NO.099977, INOLTRE MONTATO IN 099368,099369
475
LINE
477
FITTING
477
FITTING
480
NUTM26X1.5-14H
480
NUTM22X1.5
480
NUT 3/2-WAY VALVE TO CAB,4 685151
483
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
483
THRUST RING CHECK VALVE TO AIR RESERVOIR
483
THRUST RING
486
SEAL RING RIGHT SPRING-LOAD ACCUMULATOR 10X2.2
486
SEAL RING20.3X2.4
486
SEAL RING24X3
489
RESERVOIR
492
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
492
FITTINGA15/M22X1.5
492
SCREW-IN FITTING , Replaced By: A0029970271
495
SCREW BRACKET TO CAB REAR PANEL M 8X20
498
LOCKM6
498
NUTM8
498
LOCK NUT. SPRING NUT MOUNTING PARTS
501
MOUNTING CLAMP16/15
501
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
501
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
501
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
501
CLAMP16/15, Replaced By: A0019950842
501
CLAMP LINE MOUNTING 15-18 MM,V 207570
501
CLAMP6/15, Replaced By: N000000007509
501
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
501
CLAMP LINE TO SIDE MEMBER
502
CLAMPRSGU S 18/15
502
MOUNTING CLAMP SILICONERSGU S 18/15
502
CLAMP15/15MM
504
HEXALOBULAR BOLT BRACKET TO REAR AXLE M10X16
504
SCREW BRACKET AND CLAMP M6X20
504
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
504
SCREW SPEED SENSOR TO REAR AXLE
504
SCREWM 10X20
504
SCREW BRACKET TO SIDE MEMBER M10X35
504
SCREW , Replaced By: N910143008000
507
NUT BRACKET TO FIRE WALL
507
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
507
NUT HORN TO BRACKET M8
507
NUT RELAY TO BRACKET M5
507
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
507
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
510
CABLE TIE LINE MOUNTING 375X8.4MM
513
FITTINGL18-18-10
516
TEST CONNECTION
516
TEST CONNECTIONM16X1.5
519
FITTINGL15/M26X1,5
519
FITTING
531
ELBOW FITTING AIR DEHYDRATOR,CONNECTIONS: 1,21
534
SCREW PLUG QUICK-RELEASE VALVE,CONNECTION: "2"
537
FITTINGA15/M22X1,5
540
MOUNTING ANGLE
543
COMPRESSED AIR RESERVOIR
550
BRACKET
553
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
