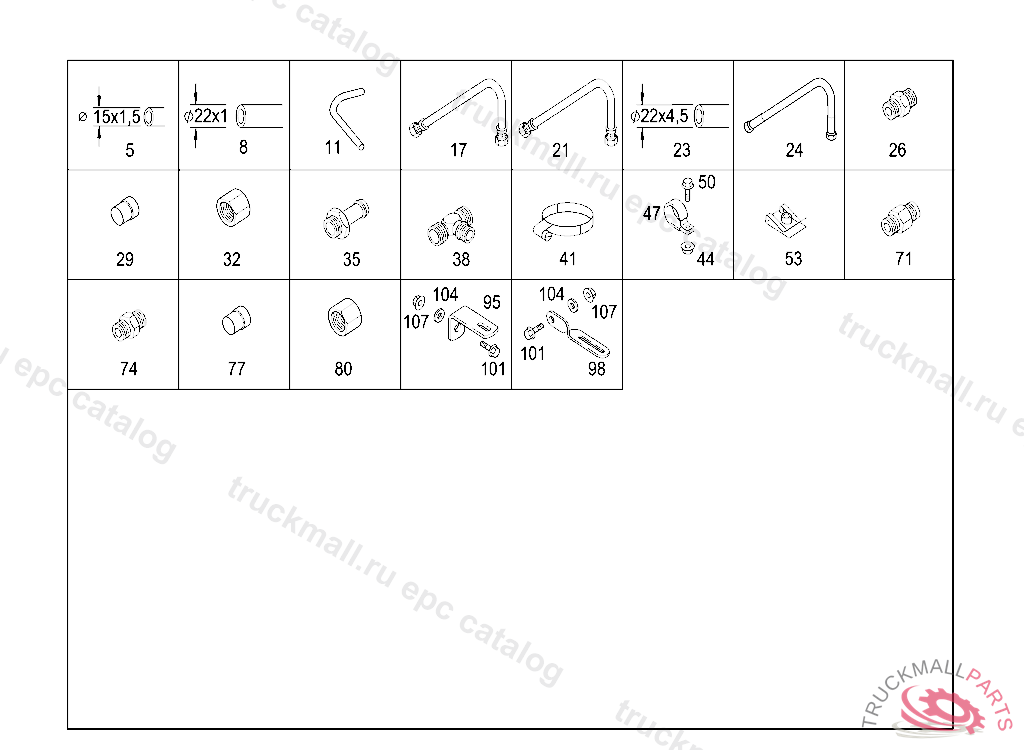

Поз.
Артикул
Описание
5
TUBE NIROSTA 15X1,5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
LINE BRASS 22X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
HOSE 90-DEGREE ARC NW15
17
LINE. HOSE
21
LINE
23
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
24
HOSE
26
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
29
GLAND (DELIVERY AND SUCTION LINE) BL15
32
NUT LINE CONNECTIONS AL 15
32
UNION NUT LINE CONNECTION
35
CONNECTOR (THROTTLE VALVE)
38
FITTING
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
NUT BRACKET TO FIRE WALL
47
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
47
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
47
CLAMP LINE MOUNTING
47
CLAMP20-30
50
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
50
SCREW , Replaced By: N914146006102
53
LOCK. NUT , Replaced By: A0039941745
71
SCREW-IN FITTING , Replaced By: N003901015005
74
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
77
GLANDBL22
80
UNION NUTAL22
95
BRACKET
98
BRACKET HOSE ATTACHMENT
101
SCREW , Replaced By: N910143008000
104
WASHER LINE MOUNTING
107
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
