Mercedes A6298210063 - Генератор импульсов системы центральной блокировки

O580 TRAVEGO 15RH 629.001

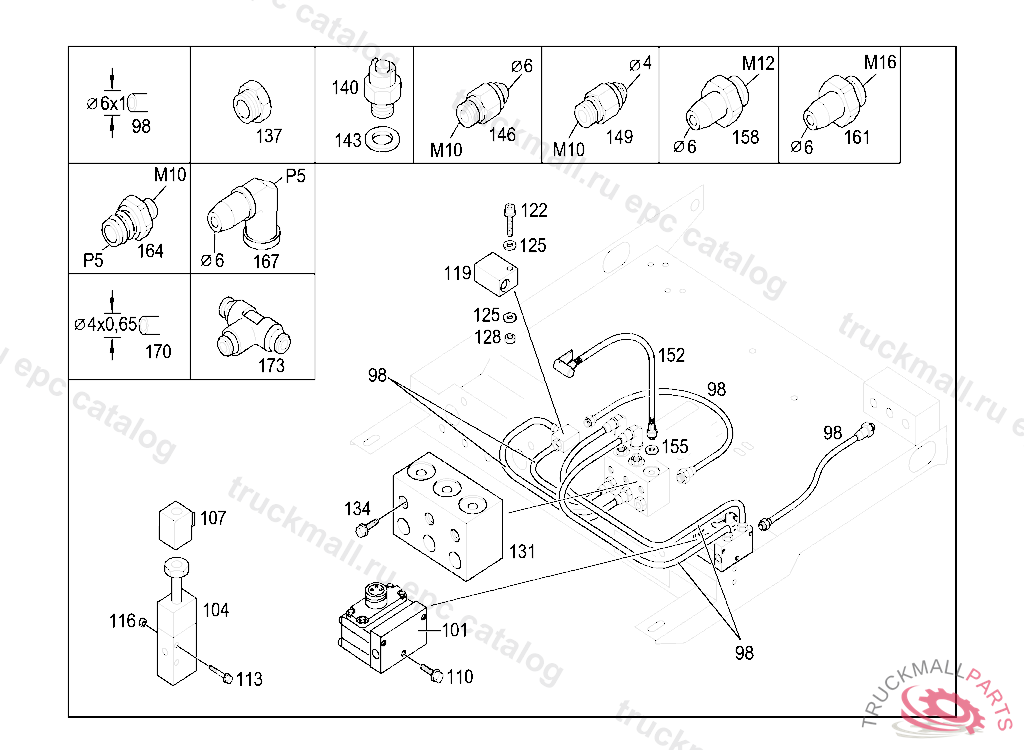

75 OUTSIDE FLAPS - 700 FLAP LOCKING MECHANISM IL. 2

Поз.
Артикул
Описание
98
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
101
A6299970236
VALVE
104
A6299970036
VALVE
107
A6298210063
PULSE SENDER UNIT
110
N910105006002
HEXAGON HEAD BOLT
113
N910105005009
HEXAGON HEAD BOLT SHIFTING CYLINDER M5X55
116
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
119
A0008050078
VALVE SHUTTLE VALVE
122
A0039909312
SCREWM 4 X 50
125
A0009944210
LOCK
128
N304032004000
NUT VALVE TO BRACKET
131
A0004200361
DISTRIBUTOR6XM16X1.5/3XM12X1.5/3XM10X1 RAUFOSS
134
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
137
A0019974235
PLUG WITH O-RING M16X1.5
140
A0007633810
SWITCH3 BAR
143
A0059976140
SEAL RING
146
A0039905768
FITTING
149
A0039906668
FITTINGM 10 X 1
152
A0249975082
HOSE4.5 X 2000
155
N007603010103
SEAL RING , Replaced By: N007603010110
158
A0039902968
FITTING6X1/M12X1.5 RAUFOSS
161
A0039903068
FITTING6X1/M16X1.5 RAUFOSS
164
A0079976572
FITTINGP5/M10X1 RAUFOSS
167
A0039906771
ELBOW FITTINGP5/6X1/90GR RAUFOSS
170
A0009873427
PLASTIC PIPE4X0,65MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
173
A0049907270
T-FITTING
