Mercedes A0009123935 - ABDECKUNG RE

O580 TRAVEGO 15RHD 629.011

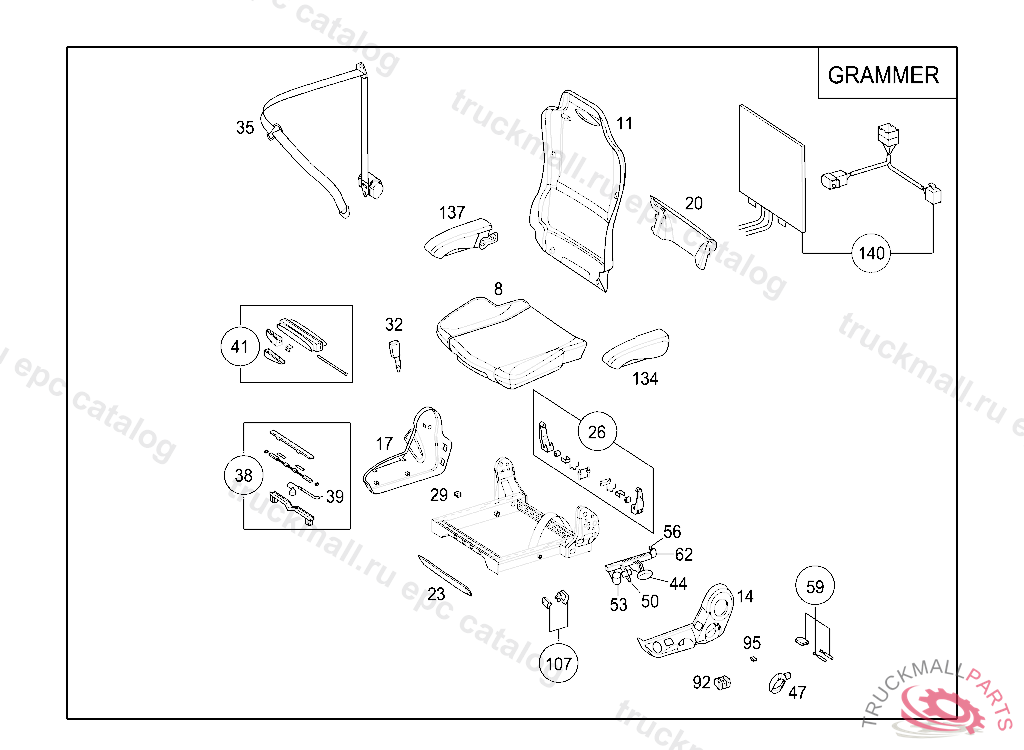

91 FRONT SEATS - 035 GRAMMER DRIVER'S SEAT IL. 3

Поз.
Артикул
Описание
8
A0009101021
SEAT CUSHION LESS SEAT HEATING, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
11
A0009130328
COVERING BACKREST
14
A0009124935
COVERING LEFT
17
A0009123935
COVERING RIGHT
20
A0009130428
COVERING PANELLING TO BACKREST
23
A0009102518
COVERING SEAT FRAMEWORK,FRONT
26
A0009100661
DETENT BACKREST
29
A0009110222
GUIDE SEAT CUSHION
32
A0028600269
FASTENER SEAT BELT BUCKLE WITHOUT WARNING CONTACT
35
A0038608185
SAFETY BELT
38
A0009102377
SEAT ADJUSTER RAKE ADJUSTMENT
39
A0009102074
PULL RAKE ADJUSTMENT
41
A0019191260
HANDLE HEIGHT ADJUSTMENT
44
A0019191360
HANDLE
47
A0009183560
HANDLE
50
A0019191560
HANDLE INSULATION
53
A0009110521
HANDLE ROTATING DEVICE
56
A0009102274
PULL HEIGHT ADJUSTMENT
59
A0009103274
PULL BACKREST ADJUSTMENT
62
A0009102374
PULL HEIGHT ADJUSTMENT
92
A0009198360
VALVE. HANDLE
95
A0098207510
SWITCH SEAT HEATING
107
A0009107938
VALVE ROTATING DEVICE
134
A0009706401
ARMREST LEFT
137
A0009706601
ARMREST RIGHT
140
A6288200498
SEAT HEATING
999
A0009830615
CORD
999
A6299190082
WASHER
999
A6299190092
CLIP
999
N000000002862
EYELET
