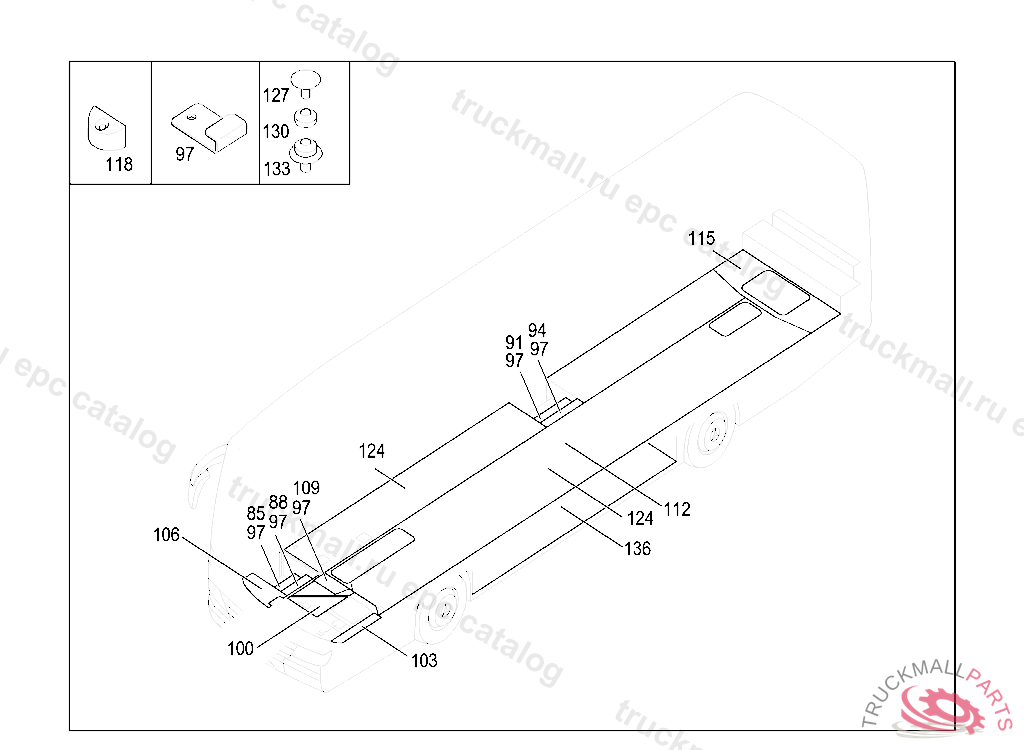

Поз.
Артикул
Описание
85
LINING STEP,FRONT 780 X 300 MM
88
LINING STEP,FRONT 780X330MM
91
LINING STEP,REAR 1000X300MM
94
LINING STEP,REAR 1000 X 330 MM
97
BRACKET
100
LINING RIGHT OF DRIVER 1100X900MM
103
LINING DRIVER ENTRY 1100 X 900 MM
106
LINING IN FRONT OF ATTENDANT SEAT 900X400MM
109
LINING STEP,FRONT,TOP 660X310MM
112
LINING AISLE 9300X5MM
112
LINING AISLE 7500X570MM
115
LINING IN FRONT OF REAR 2400 X 950 MM
118
BRACKET
124
LINING9300X8MM
124
LINING PEDESTAL 6300X850MM
127
FASTENER BUTTON
130
SPRING
133
FASTENER BUTTON
136
LINING LUGGAGE COMPARTMENT
136
LINING LUGGAGE COMPARTMENT
999
NEEDLE WEB , ABMESSUNG ANGEBEN
999
LINING , ABMESSUNG ANGEBEN
999
INSULATION2X12MM/L2000MM
999
INSULATION1000X1000X3MM, ABMESSUNG ANGEBEN
999
INSULATION , STATE DIMENSION
999
INSULATION MELAMINE RESIN FOAM,SELF-ADESIVE ON ONE SIDE 1250X1000X40MM, TO BE ADAPTED DURING ASSEMBLY
999
CARPET DARK GREY, ABMESSUNG ANGEBEN
999
ADHESIVE
999
ADHESIVE
999
CARPET. PLYWOOD10MM, ABMESSUNG ANGEBEN
999
SNAP LOCK
999
WASHER W CHAMFER FABRIC GUARD PLATE
999
SEALANT
999
SEALANT
999
ADHESIVE570ML
999
ADHESIVE600 G
999
SEALING COMPOUND310ML/KOERAPUR125
999
CARPET
999
BOTTOM COVER CROSS MEMBER 2 - 4
999
INSULATION
999
INSULATION
999
ANGLE35 X 90 MM
999
COVER SECTION CORNER PIECE 151,5X151,5MM
999
FLOOR FLAP
